Hood — 2016 workshop reference 813

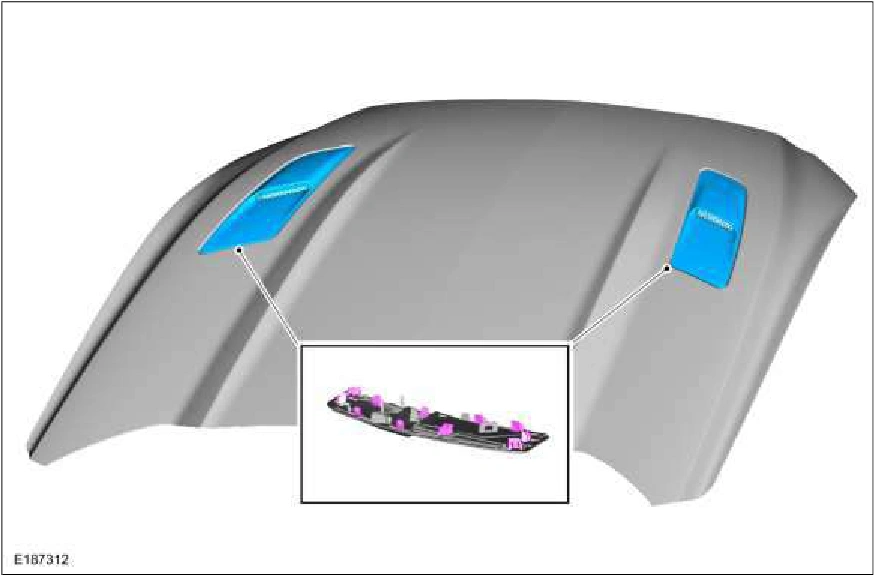

Hood — original illustration 1, reference 813Original colors & callouts · Select to enlarge

All vehicles

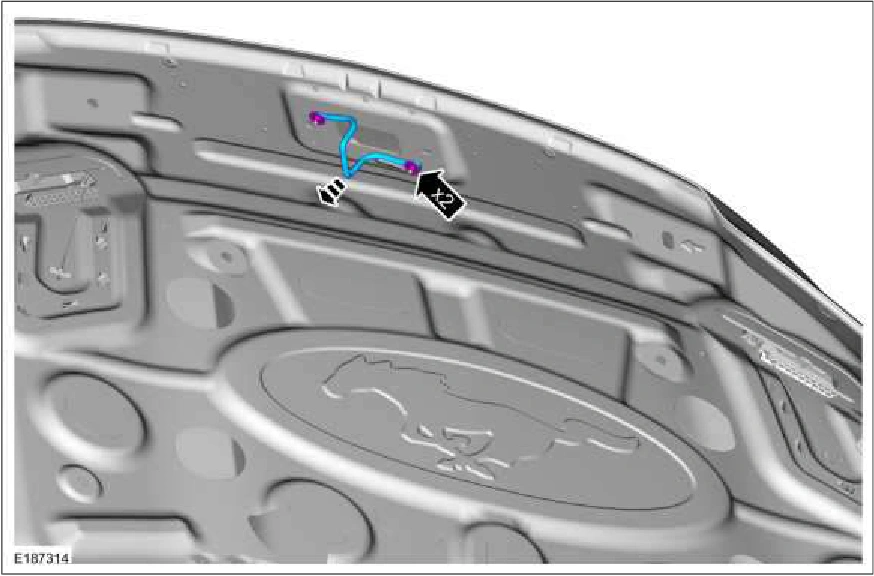

5. NOTE: This step is only necessary when installing a new component.

Remove the striker latch to hood bolts and the striker latch. Torque : 106 lb.in (12 Nm)

Hood — original illustration 2, reference 813Original colors & callouts · Select to enlarge

6. NOTE: This step is only necessary when installing a new component.

Remove the retainers and the hood pad assembly.

Source reference 813

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
