Hood

501-02 Front End Body Panels 2016 Mustang

Removal and Installation Procedure revision date: 03/13/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

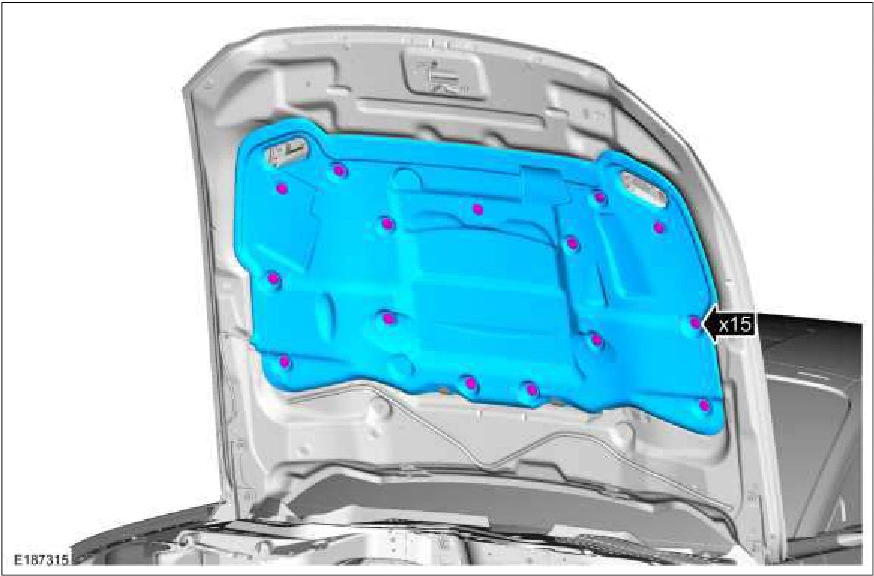

1. Remove the retainers and hood insulation.

Hood — original illustration 1, reference 811Original colors & callouts · Select to enlarge

2. Detach the windshield washer hose retainers and couplings.

Source reference 811
