Hood — 2016 workshop reference 814

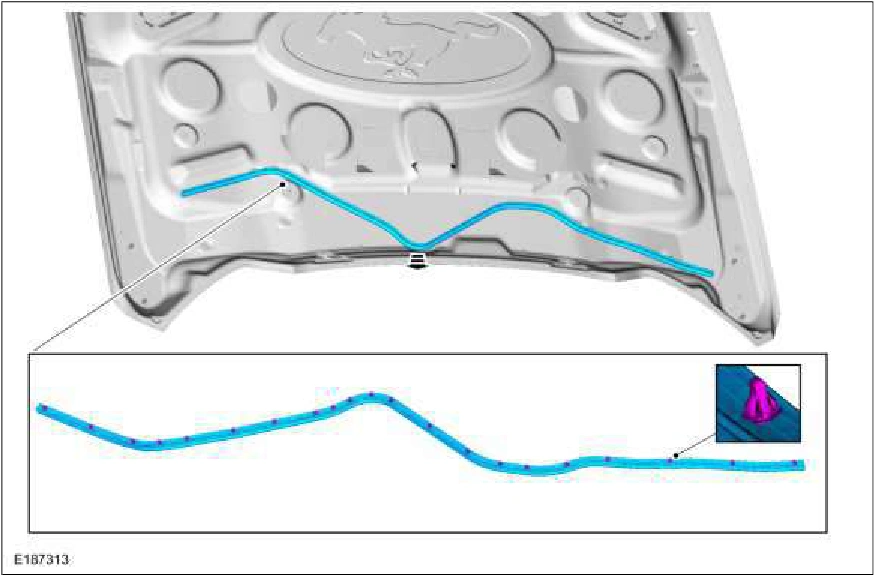

Hood — original illustration 1, reference 814Original colors & callouts · Select to enlarge

7. NOTE: RH side shown, LH side similar.

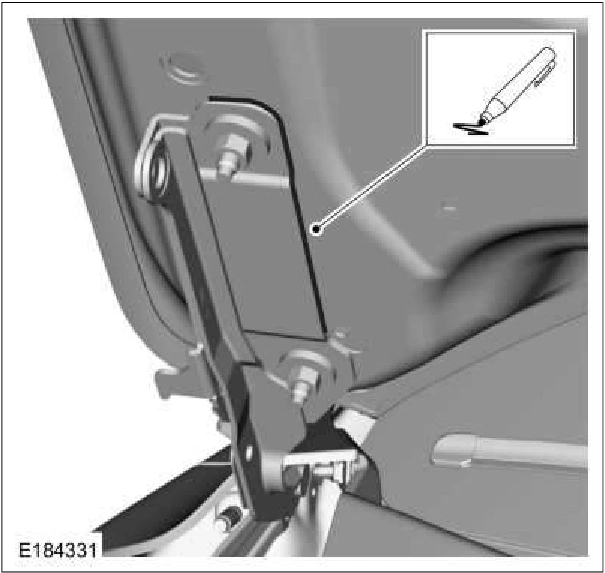

Index-mark the hood hinge location to aid in hood installation.

Hood — original illustration 2, reference 814Original colors & callouts · Select to enlarge

8. NOTE: An assistant is necessary for the removal of the hood.

Remove the nuts and the hood. Torque : 17 lb.ft (23 Nm)

Source reference 814
