Hood

501-02 Front End Body Panels

2016 MustangReference 812 / 6,619HTML edition
← Chapter contentsProcedure contents

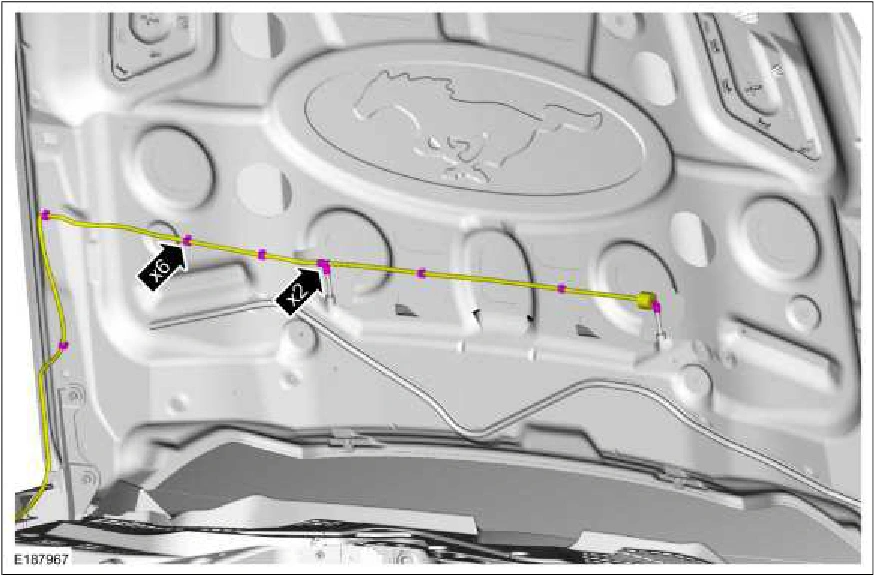

Hood — original illustration 1, reference 812Original colors & callouts · Select to enlarge

Vehicles equipped with hood scoop

3. NOTE: This step is only necessary when installing a new component.

Remove the nuts and the brackets. Torque : 27 lb.in (3 Nm)

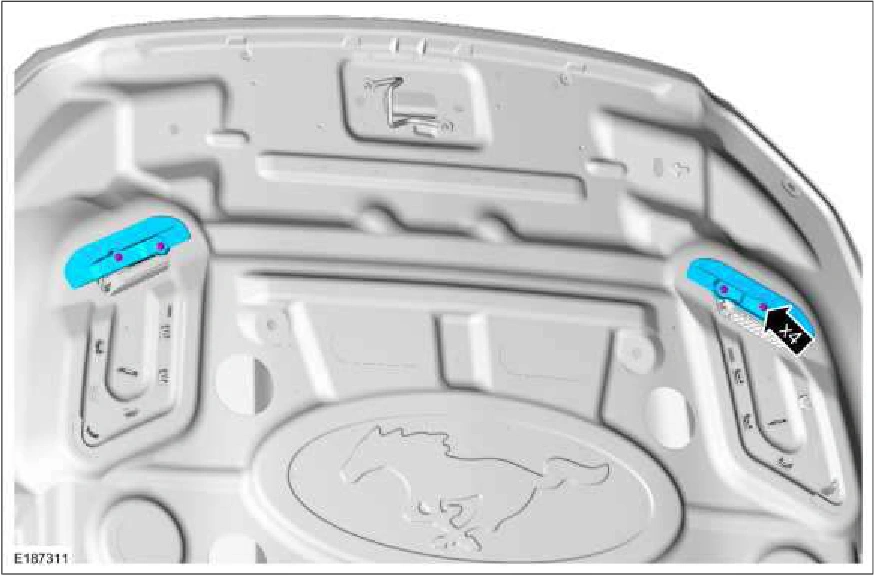

Hood — original illustration 2, reference 812Original colors & callouts · Select to enlarge

4. NOTE: This step is only necessary when installing a new component.

Remove the scoop assembly.

Source reference 812
