2016 workshop · Body & Paint

Steering Column Shrouds

501-05 Interior Trim and Ornamentation

2016 MustangReference 880 / 6,619HTML edition
← Chapter contentsProcedure contents

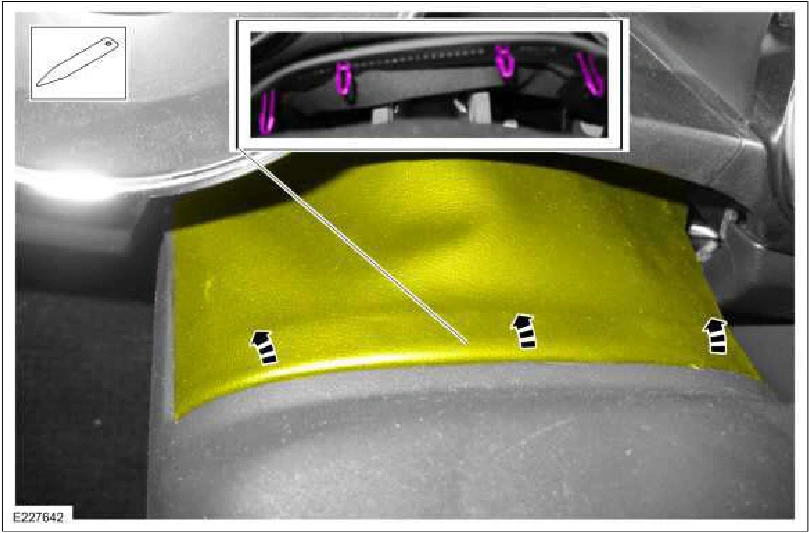

Steering Column Shrouds — original illustration 1, reference 880Original colors & callouts · Select to enlarge

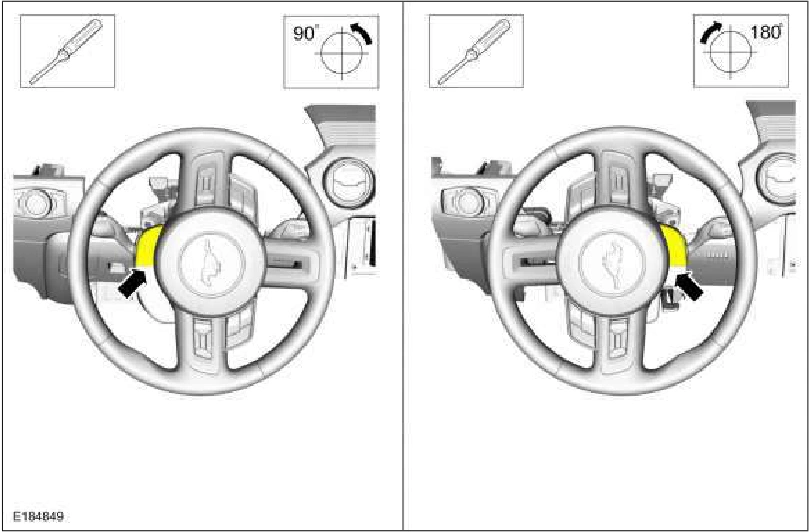

3. Release the upper steering column shroud tabs. Rotate the steering wheel 90 degrees and release the steering column shroud tab. Use the General Equipment: Flat-Bladed Screwdriver Rotate the steering wheel 180 degrees and release the steering column shroud tab. Use the General Equipment: Flat-Bladed Screwdriver

Steering Column Shrouds — original illustration 2, reference 880Original colors & callouts · Select to enlarge

4. Release the outer clips on each side and remove the upper steering column shroud.
