Rear Quarter Trim Panel

501-05 Interior Trim and Ornamentation

2016 MustangReference 878 / 6,619HTML edition
← Chapter contentsProcedure contents

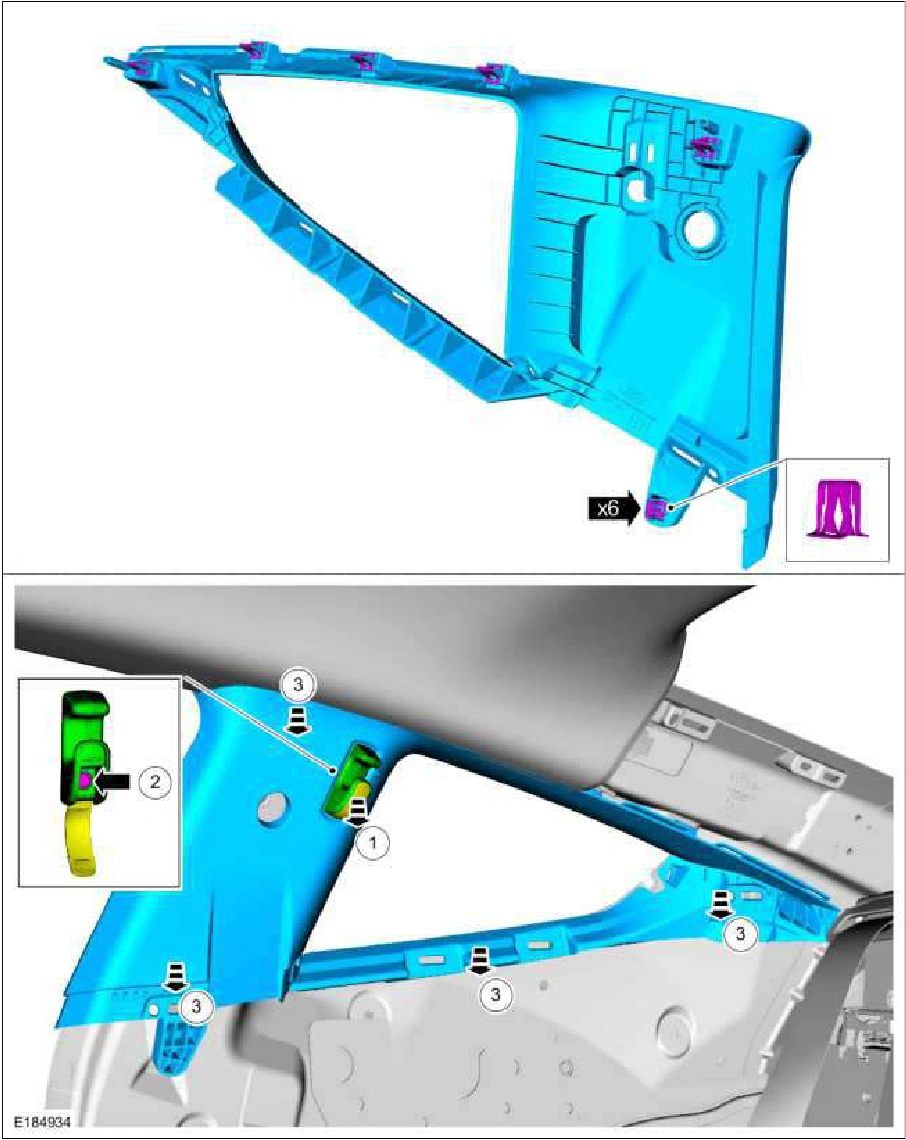

Rear Quarter Trim Panel — original illustration 1, reference 878Original colors & callouts · Select to enlarge

Installation

1. NOTE: During installation, make sure the seatbelt webbing is not twisted and the seatbelts and buckles are accessible to the occupants.

To install, reverse the removal procedure.
