Rear Quarter Trim Panel

501-05 Interior Trim and Ornamentation 2016 Mustang

Removal and Installation Procedure revision date: 10/16/2015

Removal

NOTE: LHD shown, RHD similar.

NOTE: RH side shown, LH side similar.

1. Remove the load space trim panel. Refer to: Loadspace Trim Panel - Coupe (501-05 Interior Trim and Ornamentation, Removal and Installation).

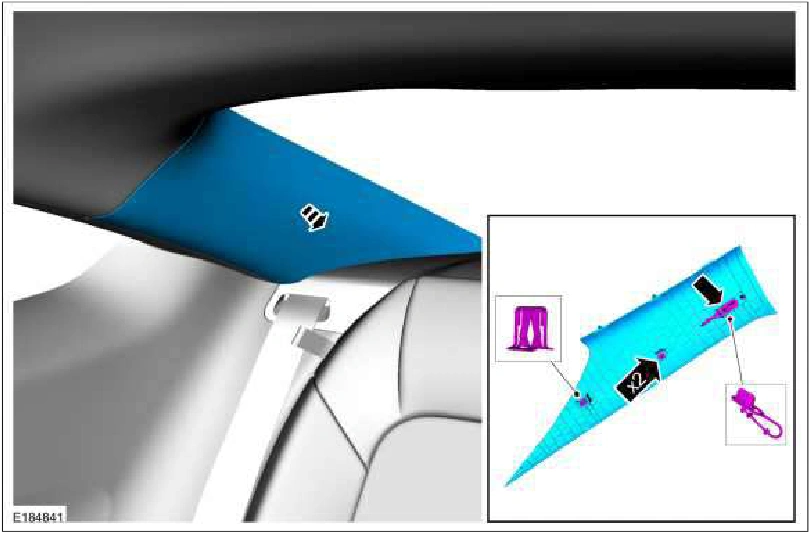

2. Release the clips, disconnect the tether clip and remove the C-pillar trim panel.

Rear Quarter Trim Panel — original illustration 1, reference 876Original colors & callouts · Select to enlarge

3. Release the tabs and remove the D-ring retainer cover.

Source reference 876
