Steering Column Shrouds

501-05 Interior Trim and Ornamentation 2016 Mustang

Removal and Installation Procedure revision date: 12/1/2015

Special Tool(s) / General Equipment

Flat-Bladed Screwdriver

Interior Trim Remover

Removal

NOTE: LHD shown, RHD similar.

1. Fully extend and lower the steering column.

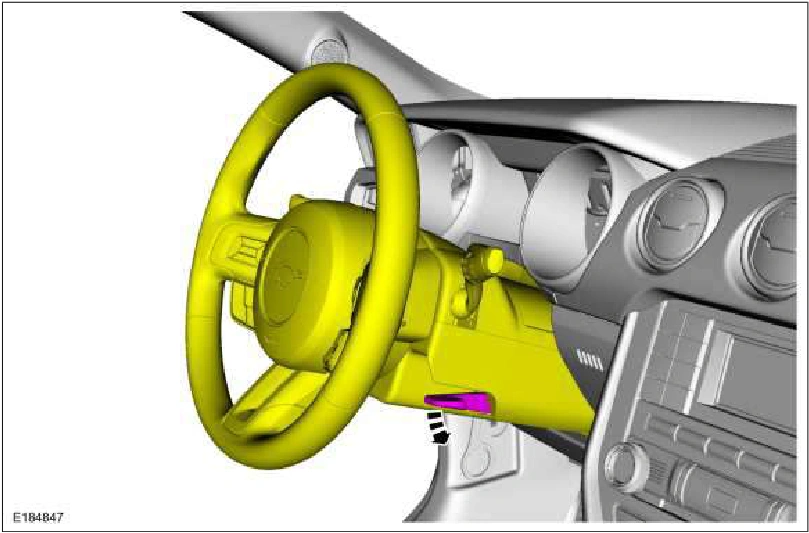

Steering Column Shrouds — original illustration 1, reference 879Original colors & callouts · Select to enlarge

2. Release the tabs and disconnect the upper gap hider from the upper steering column shroud and position aside. Use the General Equipment: Interior Trim Remover
