Rear Quarter Trim Panel — 2016 workshop reference 877

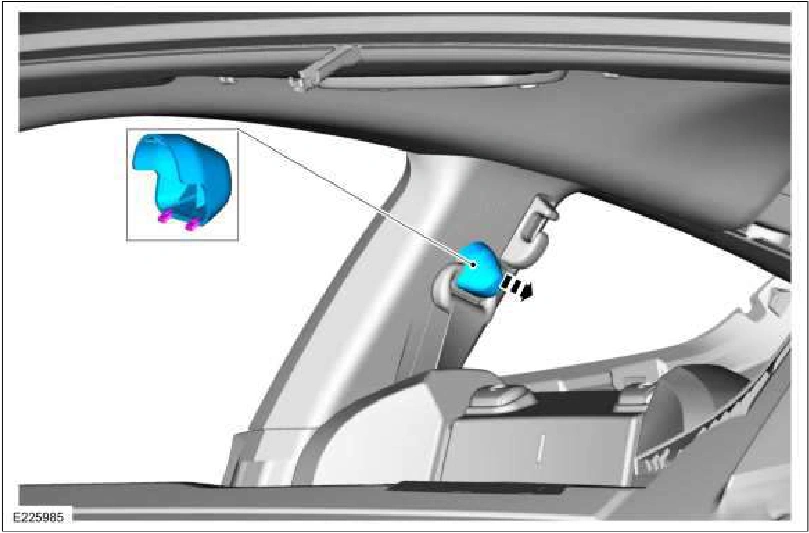

Rear Quarter Trim Panel — original illustration 1, reference 877Original colors & callouts · Select to enlarge

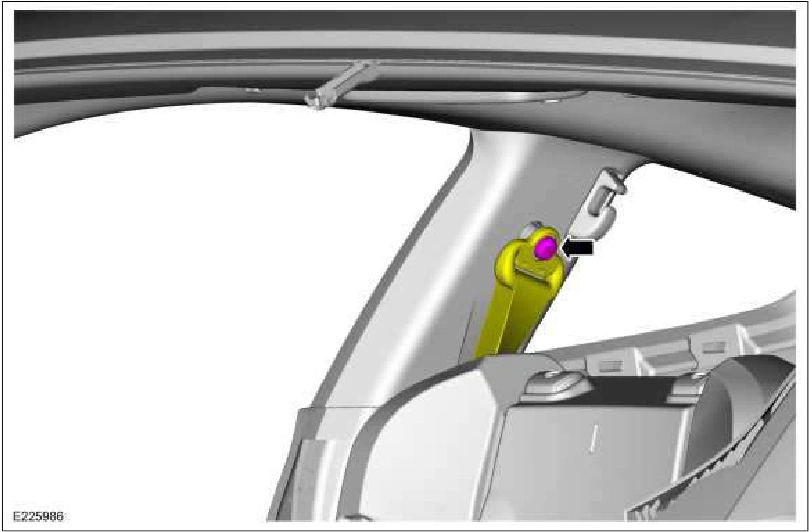

4. Remove the D-ring bolt and position aside the seatbelt. Torque : 30 lb.ft (40 Nm)

Rear Quarter Trim Panel — original illustration 2, reference 877Original colors & callouts · Select to enlarge

5. Remove the rear quarter trim panel.

1. Open the garment hook retainer cover.

2. Remove the retainer and the garment hook.

3. Release the clips and remove the rear quarter trim panel.

Source reference 877
