Accessory Drive - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,528HTML edition
← Chapter contentsManual collection
Removal — original illustration 1, reference 4528Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > ACCESSORY DRIVE BELT TENSIONER >

REMOVAL

NOTE: Removal steps in this procedure may contain installation details.

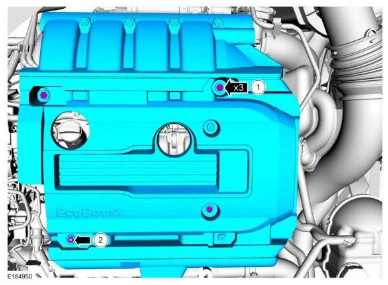

1. Remove the bolts, nut and the engine appearance cover.

Torque:

1.: 53 lb.in (6 Nm)

2.: 89 lb.in (10 Nm)

Removal — original illustration 2, reference 4528Original colors & callouts · Select to enlarge

2. Remove the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE - 2.3L EcoBoost (231kW/314PS).

3. Rotate the accessory drive belt tensioner counter clockwise and position aside the accessory drive belt.

Ford_Mustang_all_2015-2017.pdf · source reference 4528
