Installation

Accessory Drive - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,531HTML edition
← Chapter contentsManual collection

compressor pulley approximately 180°.

2. Fold the stretchy belt tool under the inside of the A/C compressor belt as shown in illustration.

3. In one quick motion, firmly pull the stretchy belt tool and remove the A/C compressor belt.

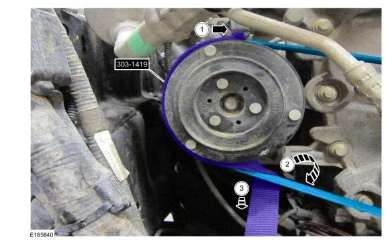

Installation — original illustration 1, reference 4531Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > AIR CONDITIONING (A C) COMPRESSOR BELT >

INSTALLATION

1. Remove the accessory drive belt from the accessory drive belt tensioner. Position the belt away from the crankshaft pulley.

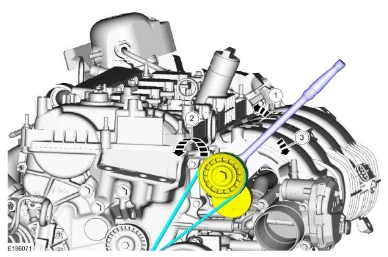

Installation — original illustration 2, reference 4531Original colors & callouts · Select to enlarge

NOTE: After installation, make sure the A/C compressor belt is correctly seated on the crankshaft and A/C compressor pulleys.

2. Position the A/C compressor belt onto the A/C compressor pulley. Position the A/C compressor belt on top of the crankshaft pulley and feed a cable tie with a minimum width of 3 mm (0.12 in) through the crankshaft pulley spokes, then up and over the A/C compressor belt and tighten the cable tie as shown in illustration.
