Installation — Accessory Drive - 2.3L EcoBoost (231kW & 314PS) · Reference 4533

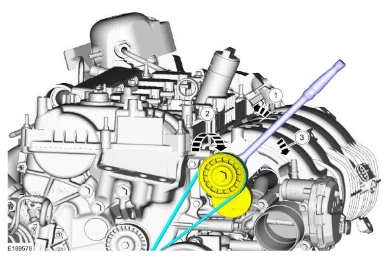

Installation — original illustration 1, reference 4533Original colors & callouts · Select to enlarge

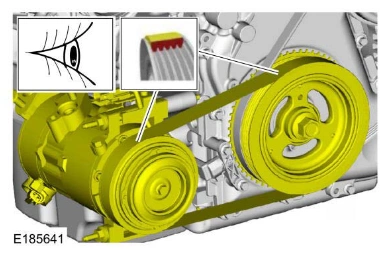

6. After installation, make sure the A/C compressor belt is correctly seated on all pulleys.

Installation — original illustration 2, reference 4533Original colors & callouts · Select to enlarge

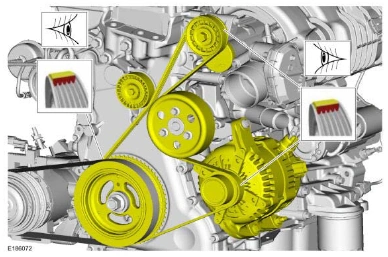

7. After installation, make sure the accessory drive belt is correctly seated on all pulleys.

Installation — original illustration 3, reference 4533Original colors & callouts · Select to enlarge

8. Install the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE - 2.3L EcoBoost (231kW/314PS).

9. Install the bolts and nuts and the engine appearance cover.

Torque

: 80 lb.in (9 Nm)
