Installation

Accessory Drive - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,532HTML edition
← Chapter contentsManual collection

Use the General Equipment: Cable Ties

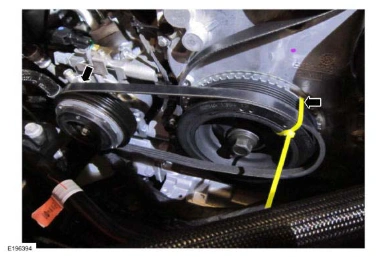

Installation — original illustration 1, reference 4532Original colors & callouts · Select to enlarge

3. Rotate the crankshaft pulley by hand 180° and install the A/C compressor belt.

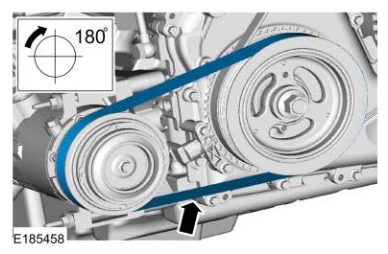

Installation — original illustration 2, reference 4532Original colors & callouts · Select to enlarge

4. Remove the cable tie and rotate the crankshaft by hand 360° to verify the A/C compressor belt has correctly seated onto the crankshaft and A/C compressor pulleys.

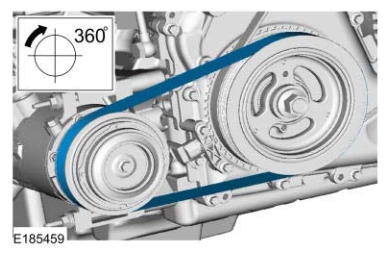

Installation — original illustration 3, reference 4532Original colors & callouts · Select to enlarge

5. Install accessory drive belt.

Ford_Mustang_all_2015-2017.pdf · source reference 4532
