Accessory Drive - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,530HTML edition
← Chapter contentsManual collection

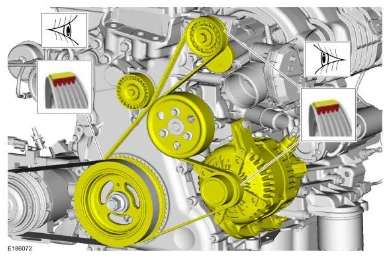

Removal — original illustration 1, reference 4530Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > AIR CONDITIONING (A C) COMPRESSOR BELT

Special Tool(s) / General Equipment

Cable Ties

REMOVAL AND INSTALLATION > AIR CONDITIONING (A C) COMPRESSOR BELT >

REMOVAL

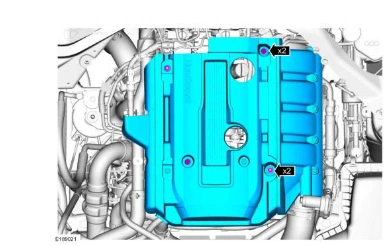

1. Remove the bolts and nuts and the engine appearance cover.

Removal — original illustration 2, reference 4530Original colors & callouts · Select to enlarge

2. Remove the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE - 2.3L EcoBoost (231kW/314PS).

NOTE: Typical application shown in illustration.

3. Remove the A/C compressor belt.

1. Turn the crankshaft pulley bolt clockwise and feed the stretchy belt tool on to the A/C

Ford_Mustang_all_2015-2017.pdf · source reference 4530
