Installation

Accessory Drive - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,529HTML edition
← Chapter contentsManual collection

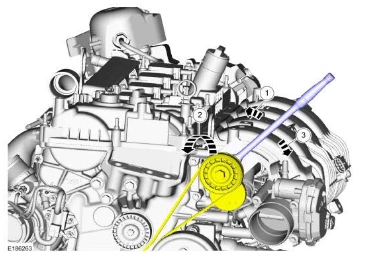

Installation — original illustration 1, reference 4529Original colors & callouts · Select to enlarge

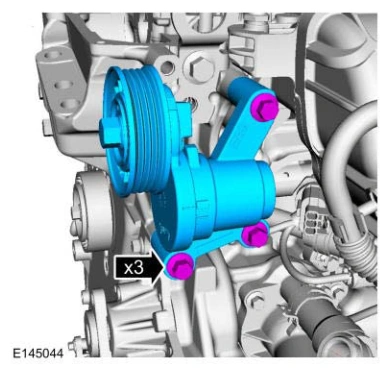

4. Remove the bolts and the accessory drive belt tensioner.

Torque

: 18 lb.ft (25 Nm)

Installation — original illustration 2, reference 4529Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > ACCESSORY DRIVE BELT TENSIONER >

INSTALLATION

1. To install, reverse the removal procedure.

2. After installation, make sure the accessory drive belt is correctly seated on all pulleys.
