Knock Sensor (Ks) — Removal — Electronic Engine Controls - 3.7L Duratec (227kW & 301PS) · Reference 6373

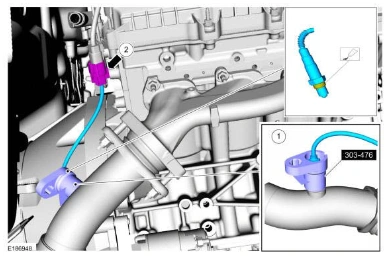

Knock Sensor (Ks) — original illustration 1, reference 6373Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > KNOCK SENSOR (KS) > REMOVAL

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the KS electrical connector.

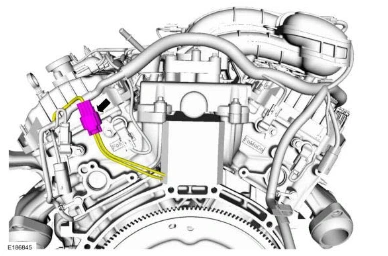

Knock Sensor (Ks) — original illustration 2, reference 6373Original colors & callouts · Select to enlarge

2. Remove the lower intake manifold. Refer to: LOWER INTAKE MANIFOLD .

NOTE: The cylinder heads are removed for clarity.

3. Remove the bolts and the KS.

Torque

: 177 lb.in (20 Nm)
