Remove the retainers and the PCM.

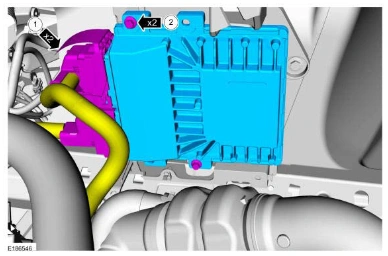

Installation — original illustration 1, reference 6376Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > POWERTRAIN CONTROL MODULE (PCM) >

INSTALLATION

1.

1. Connect the PCM electrical connectors.

2. Install the PCM and the retainers.

Torque

: 62 lb.in (7 Nm)

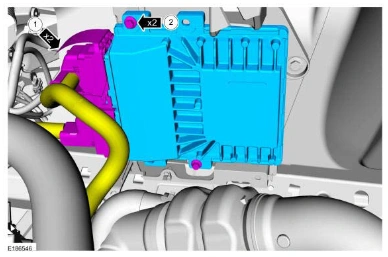

Installation — original illustration 2, reference 6376Original colors & callouts · Select to enlarge

2. Position back the BJB.
