Variable Camshaft Timing (Vct) Oil Control Solenoid — Installation — Electronic Engine Controls - 3.7L Duratec (227kW & 301PS) · Reference 6378

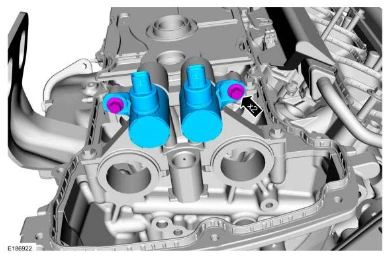

Variable Camshaft Timing (Vct) Oil Control Solenoid — original illustration 1, reference 6378Original colors & callouts · Select to enlarge

LH (left-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids

3. Remove the LH valve cover. Refer to: VALVE COVER LH .

4. Remove the bolts and the LHVCT oil control solenoids.

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 20°

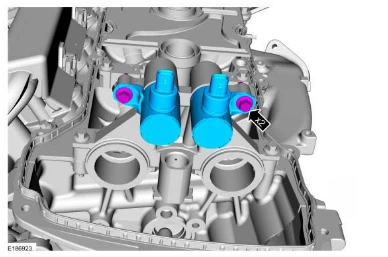

Variable Camshaft Timing (Vct) Oil Control Solenoid — original illustration 2, reference 6378Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > VARIABLE CAMSHAFT TIMING (VCT) OIL

CONTROL SOLENOID > INSTALLATION

1. To install, reverse the removal procedure.
