Manifold Absolute Pressure And Temperature (Mapt) Sensor — Removal — Electronic Engine Controls - 3.7L Duratec (227kW & 301PS) · Reference 6374

Manifold Absolute Pressure And Temperature (Mapt) Sensor — original illustration 1, reference 6374Original colors & callouts · Select to enlarge

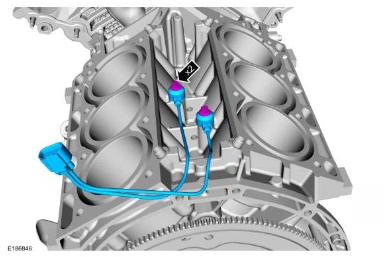

REMOVAL AND INSTALLATION > KNOCK SENSOR (KS) > INSTALLATION

1. To install, reverse the removal procedure.

REMOVAL AND INSTALLATION > MANIFOLD ABSOLUTE PRESSURE AND

TEMPERATURE (MAPT) SENSOR > REMOVAL

NOTE: Removal steps in this procedure may contain installation details.

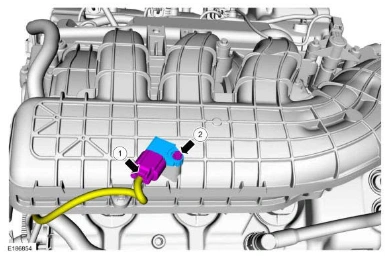

1. Disconnect the MAPT sensor electrical connector.

2. Remove the retainer and the MAPT sensor.

Torque

: 35 lb.in (4 Nm)

Manifold Absolute Pressure And Temperature (Mapt) Sensor — original illustration 2, reference 6374Original colors & callouts · Select to enlarge

Ford_Mustang_all_2015-2017.pdf · source reference 6374
