Fender Apron Panel Reinforcement — 2016 workshop reference 2241

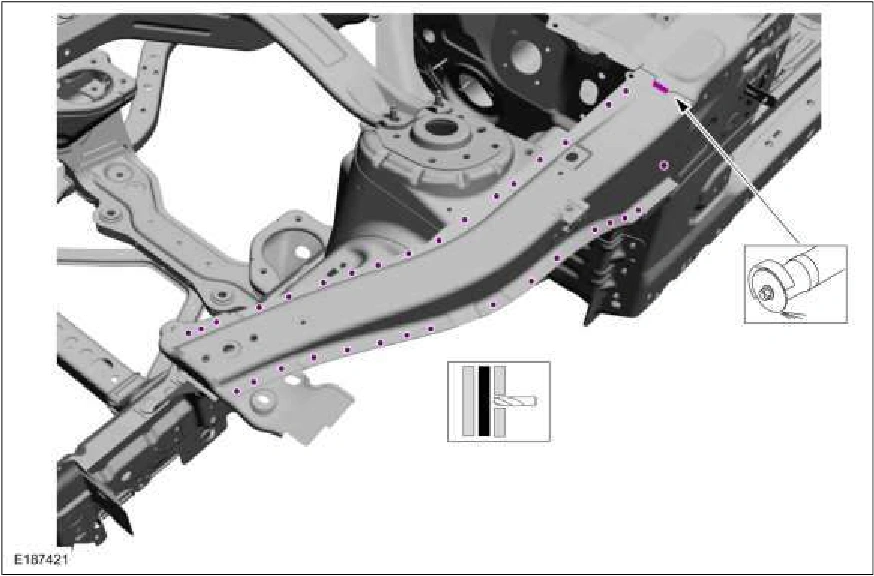

Fender Apron Panel Reinforcement — original illustration 1, reference 2241Original colors & callouts · Select to enlarge

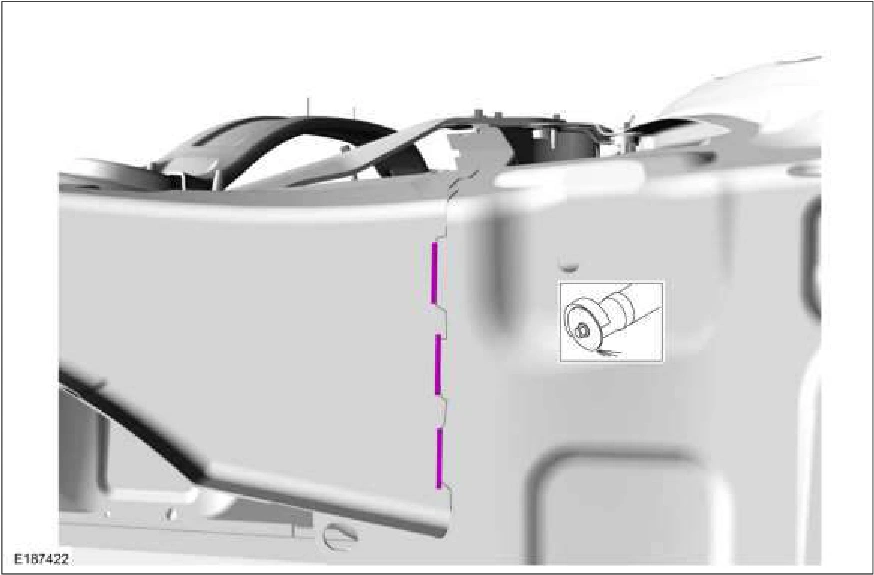

5. Grind welds at rear flange of the reinforcement. Use the General Equipment: Grinder

Fender Apron Panel Reinforcement — original illustration 2, reference 2241Original colors & callouts · Select to enlarge

6. Remove the upper fender apron reinforcement.
