Fender Apron Panel Reinforcement — 2016 workshop reference 2243

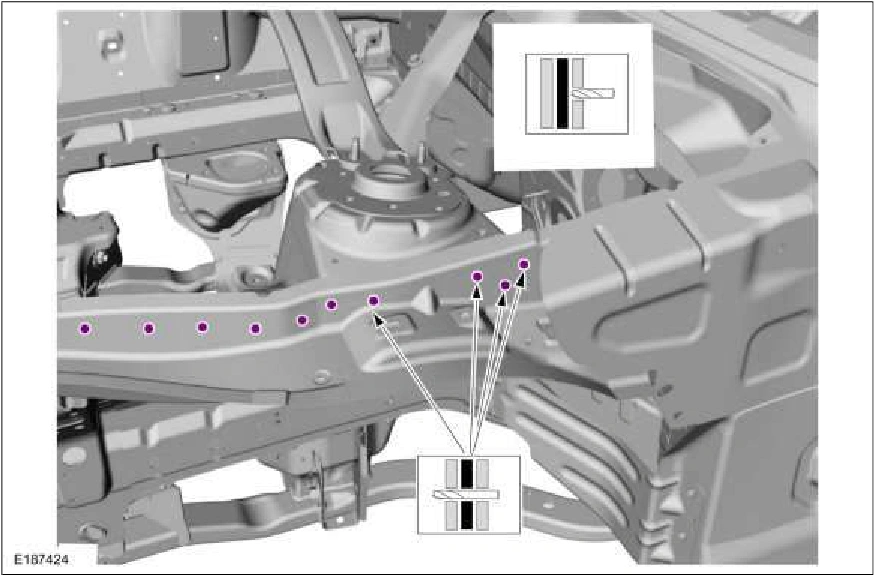

Fender Apron Panel Reinforcement — original illustration 1, reference 2243Original colors & callouts · Select to enlarge

9. Remove the welds at the rear inner flange of the reinforcement. Use the General Equipment: Spot Weld Drill Bit

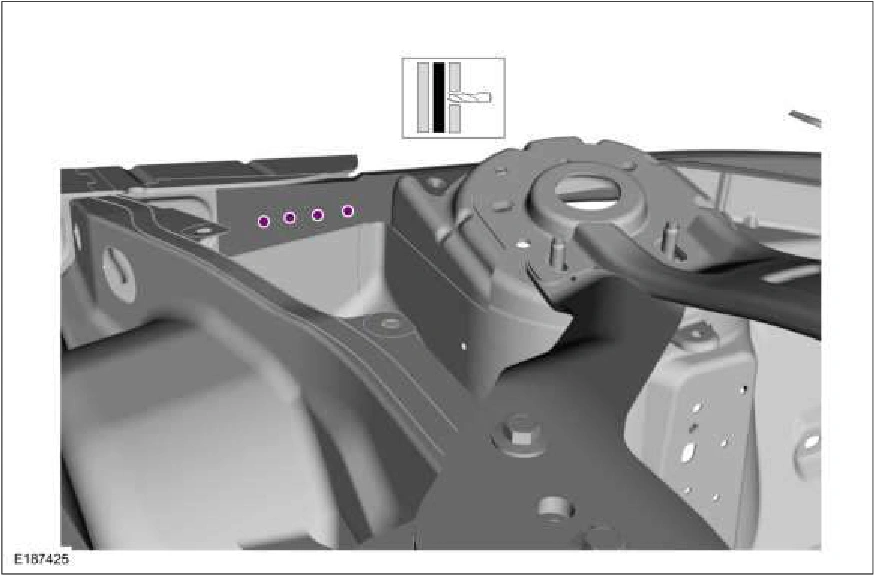

Fender Apron Panel Reinforcement — original illustration 2, reference 2243Original colors & callouts · Select to enlarge

10. Drill out the welds at the reinforcement bracket.
