Fender Apron Panel Reinforcement — 2016 workshop reference 2245

Fender Apron Panel Reinforcement — original illustration 1, reference 2245Original colors & callouts · Select to enlarge

Step 3

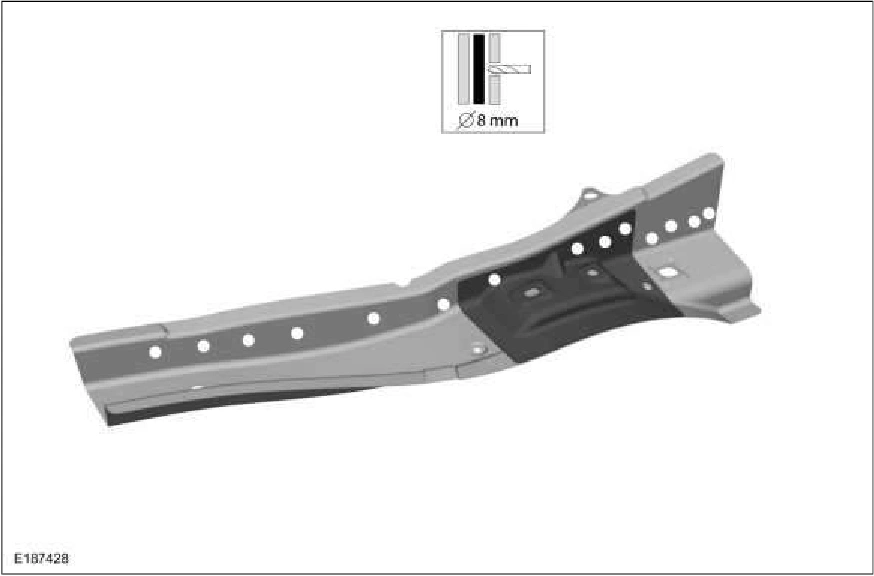

1. Drill plug weld holes in the replacement panel.

Fender Apron Panel Reinforcement — original illustration 2, reference 2245Original colors & callouts · Select to enlarge

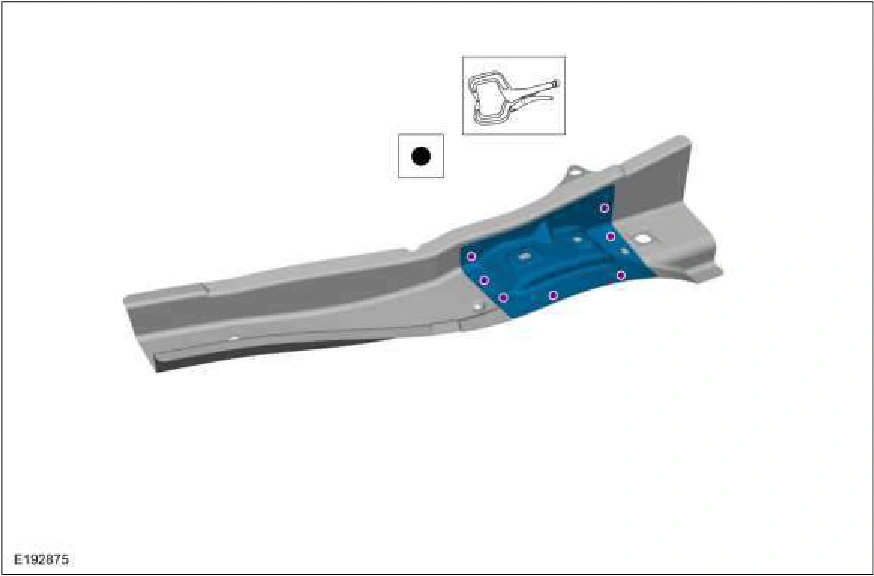

4. Install the lower fender apron panel reinforcement and plug weld. Use the General Equipment: MIG/MAG Welding Equipment

Source reference 2245

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
