Fender Apron Panel Reinforcement — 2016 workshop reference 2247

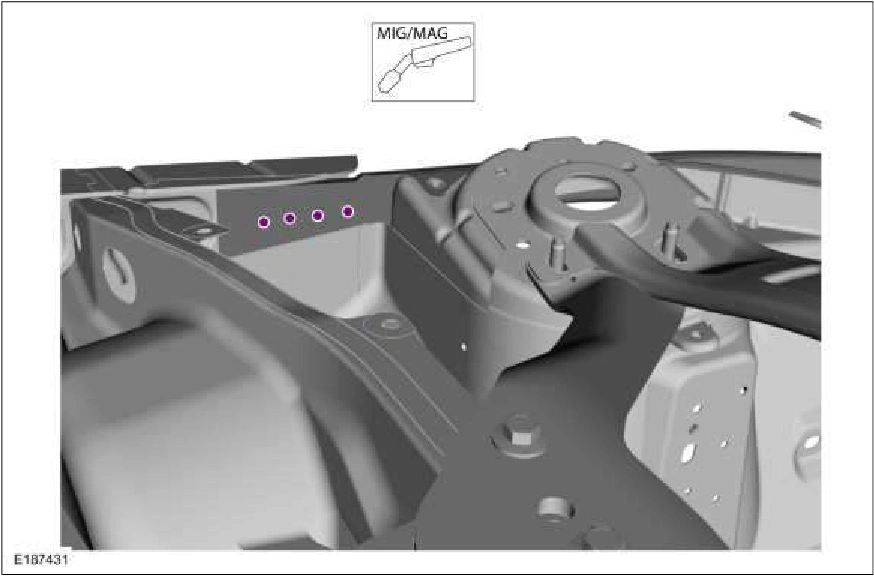

Fender Apron Panel Reinforcement — original illustration 1, reference 2247Original colors & callouts · Select to enlarge

7. Install the upper fender apron reinforcement and bracket weld. Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Resistance Spotwelding Equipment

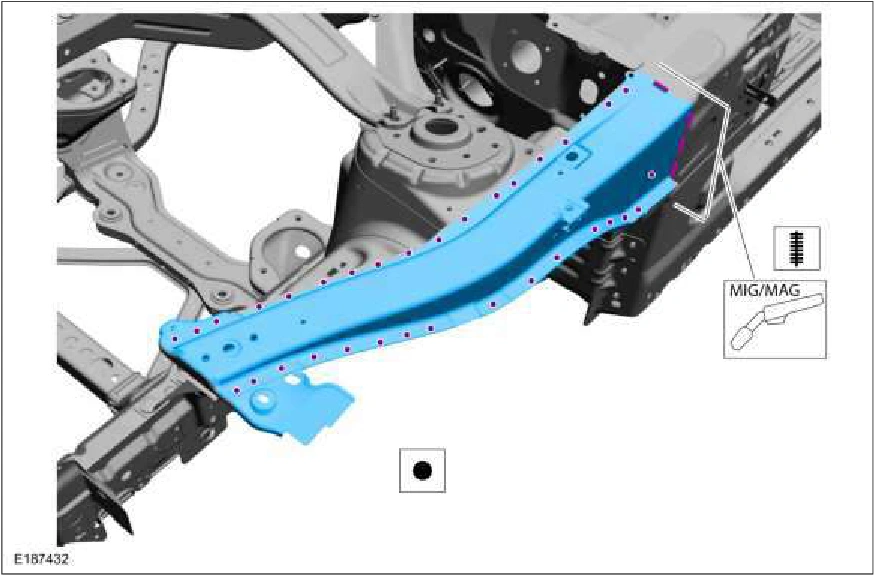

Fender Apron Panel Reinforcement — original illustration 2, reference 2247Original colors & callouts · Select to enlarge

8. Finish the repair area using typical metal finishing techniques.

9. Sealing work: All areas must be sealed to production level. Material : Seam Sealer / TA-2-B

10. Refinish using a Ford approved paint system.

11. Restore corrosion protection. Refer to: Corrosion Prevention (501-25 Body Repairs - General Information, General Procedures).

Source reference 2247

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
