Fender Apron Panel Reinforcement — 2016 workshop reference 2246

Fender Apron Panel Reinforcement — original illustration 1, reference 2246Original colors & callouts · Select to enlarge

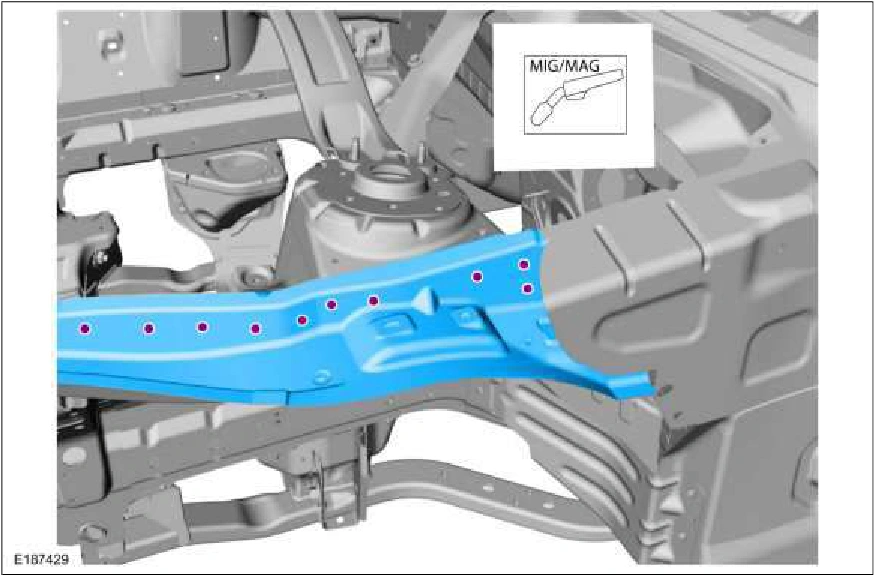

5. Weld the bracket reinforcement to the fender apron panel. Use the General Equipment: Resistance Spotwelding Equipment

Fender Apron Panel Reinforcement — original illustration 2, reference 2246Original colors & callouts · Select to enlarge

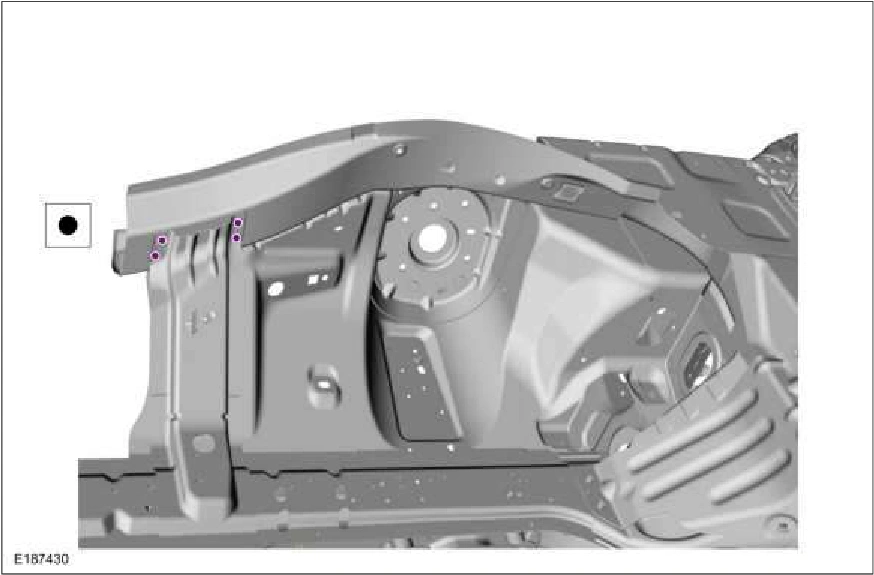

6. Plug weld the rear inner flange of the lower fender apron panel. Use the General Equipment: MIG/MAG Welding Equipment
