Fender Apron Panel Reinforcement — 2016 workshop reference 2244

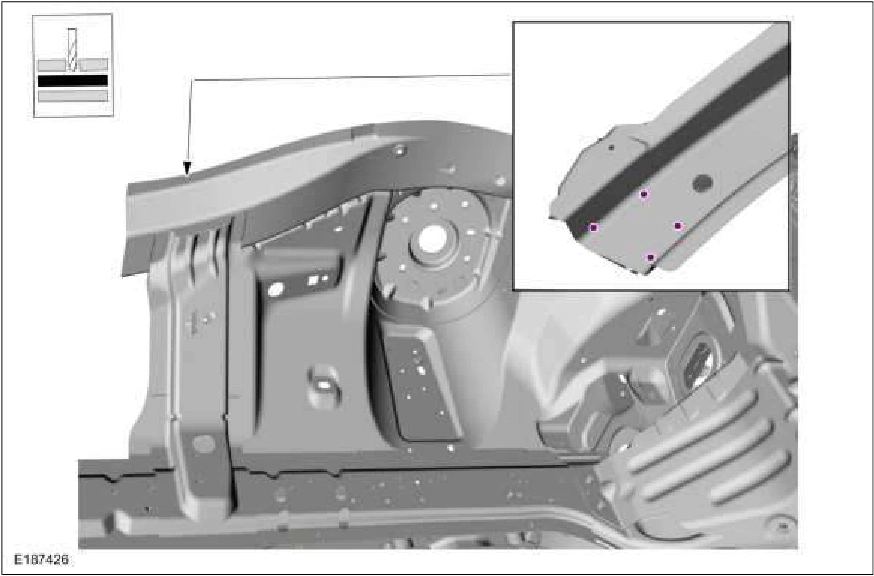

Fender Apron Panel Reinforcement — original illustration 1, reference 2244Original colors & callouts · Select to enlarge

11. Remove the lower fender apron reinforcement.

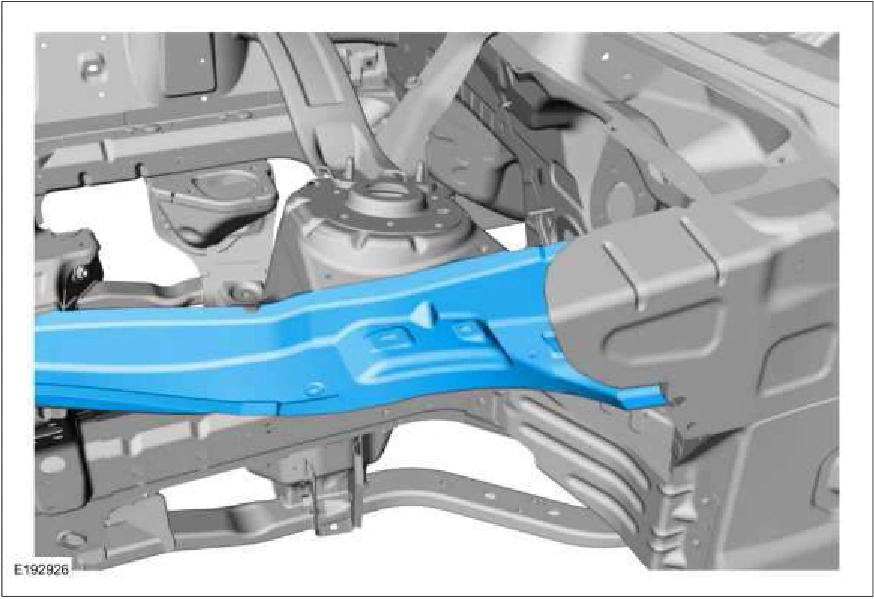

Fender Apron Panel Reinforcement — original illustration 2, reference 2244Original colors & callouts · Select to enlarge

Installation

1. Refer to: Joining Techniques (501-25 Body Repairs - General Information, General Procedures).

2. Install the apron panel reinforcement to the lower apron panel reinforcement and spot weld. Use the General Equipment: Locking Pliers Use the General Equipment: Resistance Spotwelding Equipment
