Fender Apron Panel Reinforcement — 2016 workshop reference 2242

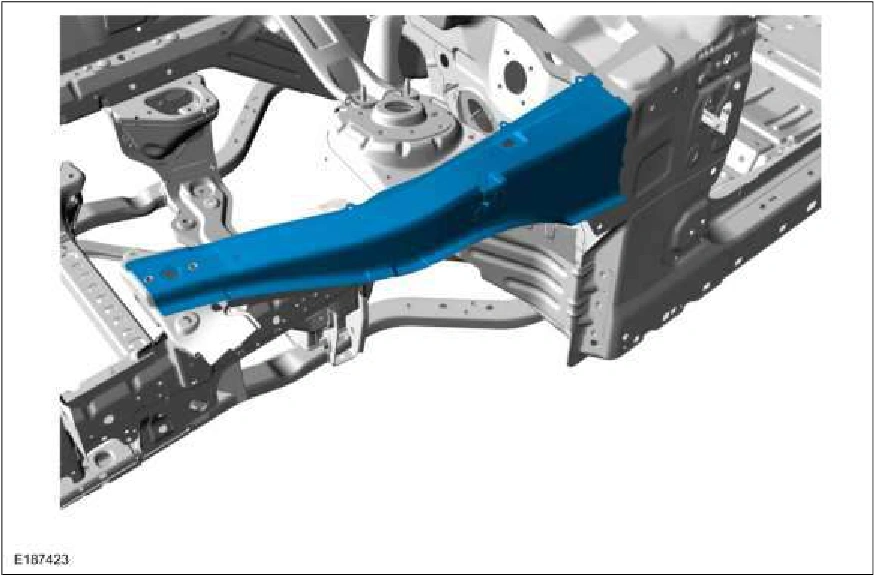

Fender Apron Panel Reinforcement — original illustration 1, reference 2242Original colors & callouts · Select to enlarge

7. Drill out the welds from upper fender apron reinforcement bracket and remove. Use the General Equipment: Spot Weld Drill Bit

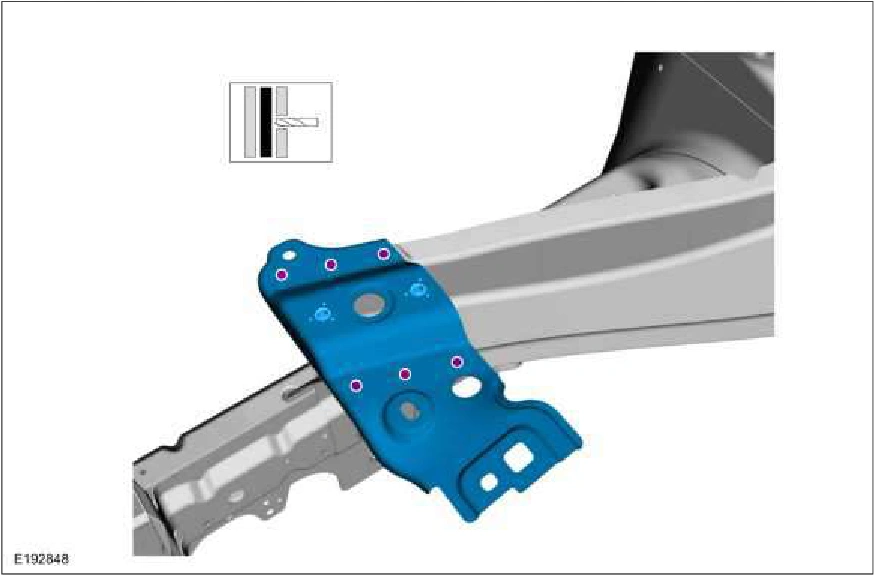

Fender Apron Panel Reinforcement — original illustration 2, reference 2242Original colors & callouts · Select to enlarge

8. Drill out the welds on the lower fender apron reinforcement as indicated. Use the General Equipment: Spot Weld Drill Bit
