Rear Subframe — 2016 workshop reference 2384

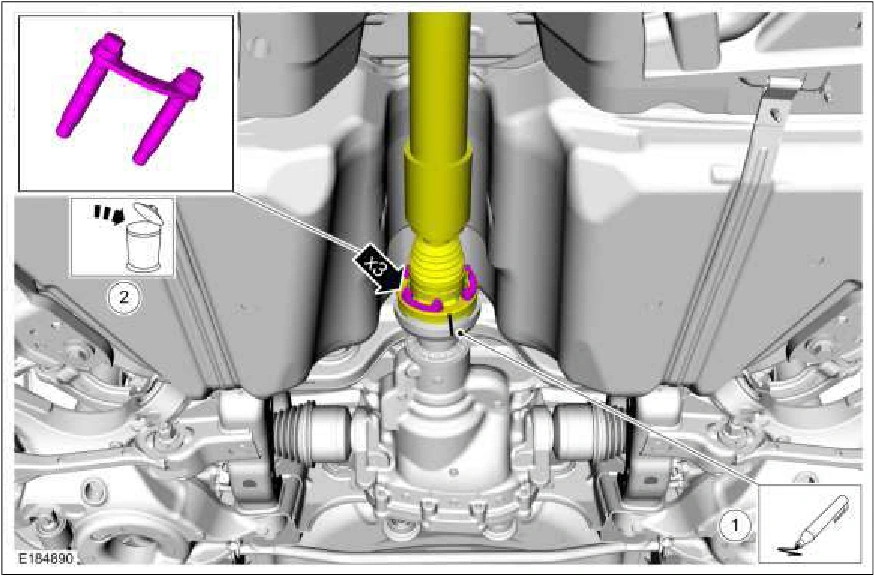

Rear Subframe — original illustration 1, reference 2384Original colors & callouts · Select to enlarge

7. NOTICE: Do not remove driveshaft from the pinion flange by pulling on the driveshaft tube.

Damage to the CV-joint can result.

1. Support the driveshaft.

2. Using a screwdriver inserted into the slot on the pinion flange, pry the driveshaft from the pinion flange.

3. Separate the driveshaft from the pinion flange.

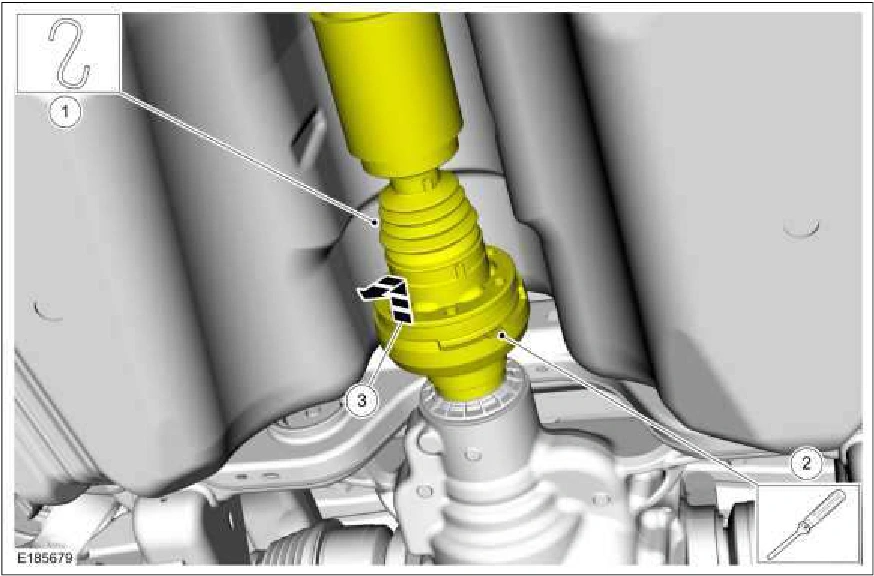

Rear Subframe — original illustration 2, reference 2384Original colors & callouts · Select to enlarge

8. If equipped. Disconnect the differential fluid temperature sensor electrical connector.
