Rear Subframe — 2016 workshop reference 2387

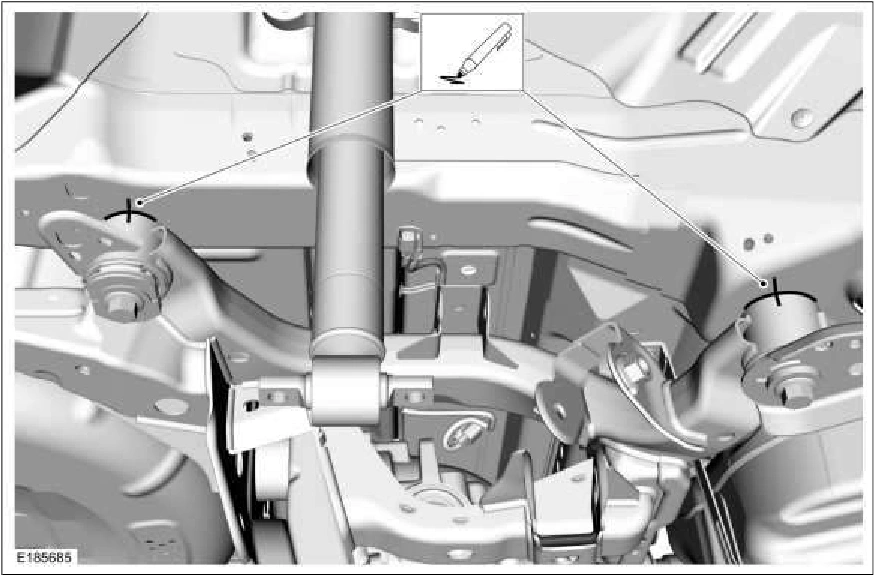

Rear Subframe — original illustration 1, reference 2387Original colors & callouts · Select to enlarge

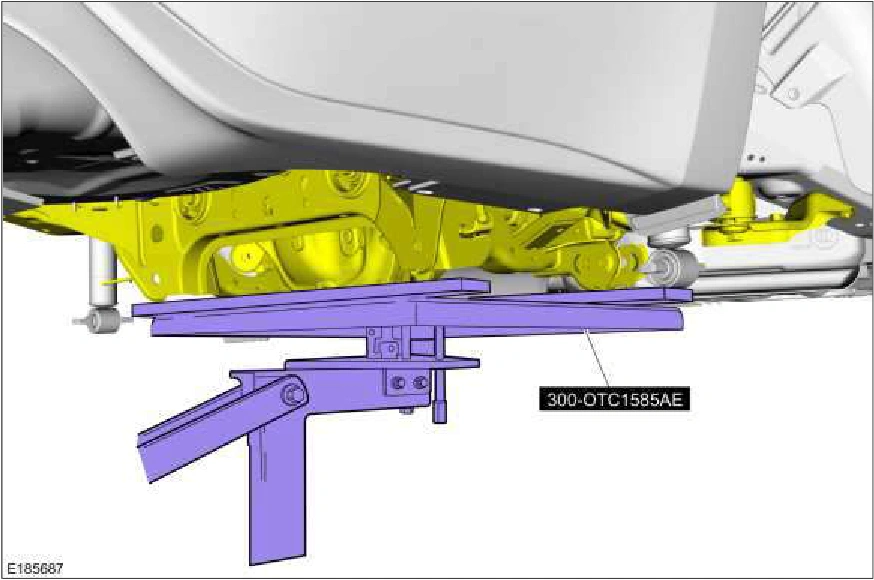

13. Position the powertrain lift under the rear subframe. Use Special Service Tool: 300-OTC1585AE Powertrain Lift.

Rear Subframe — original illustration 2, reference 2387Original colors & callouts · Select to enlarge

Step 14

1. Remove and discard the 2 rear subframe forward bolts.

2. Remove the 4 rear subframe bracket bolts and remove the brackets.

Source reference 2387
