Rear Subframe — 2016 workshop reference 2390

Rear Subframe — original illustration 1, reference 2390Original colors & callouts · Select to enlarge

Step 3

1. NOTE: Only tighten the bolts finger tight at this stage.

Position the brackets and install the 4 rear subframe bracket bolts.

2. Install the 2 new rear subframe forward bolts.

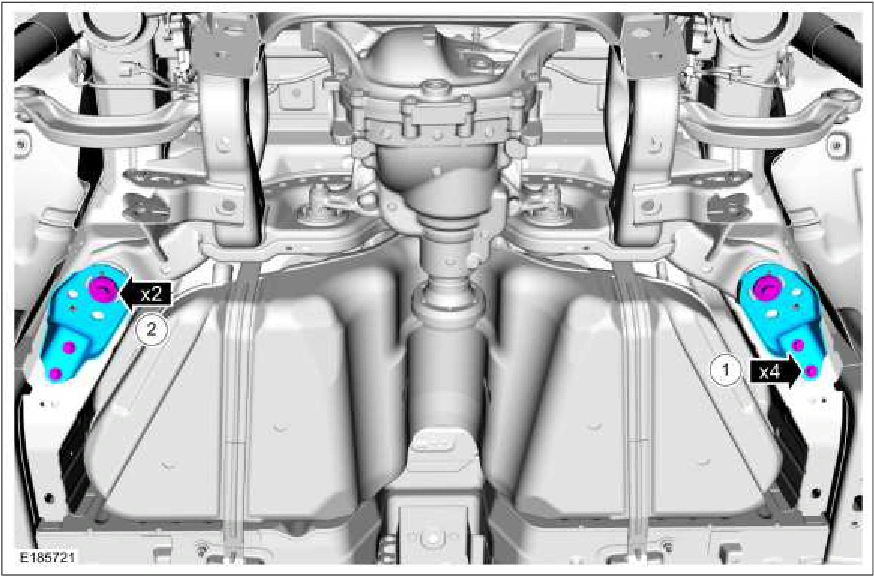

Rear Subframe — original illustration 2, reference 2390Original colors & callouts · Select to enlarge

4. On both sides. Align the index marks made during removal.

Source reference 2390

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
