Rear Subframe — 2016 workshop reference 2389

Rear Subframe — original illustration 1, reference 2389Original colors & callouts · Select to enlarge

Installation

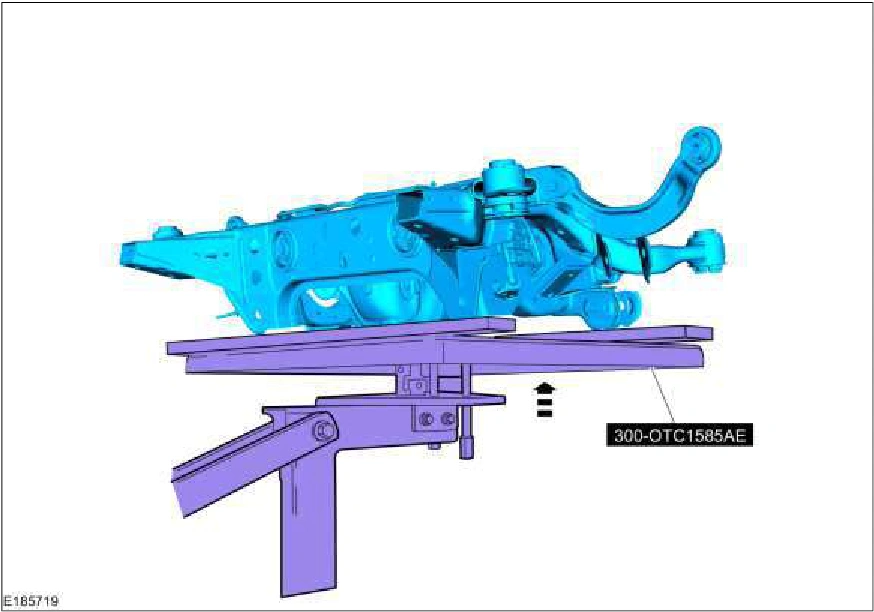

1. Using the powertrain lift, raise the rear subframe to the vehicle. Use Special Service Tool: 300-OTC1585AE Powertrain Lift.

Rear Subframe — original illustration 2, reference 2389Original colors & callouts · Select to enlarge

2. NOTE: Only tighten the bolts finger tight at this stage.

Install the 2 new rear subframe rearward bolts.
