Rear Subframe — 2016 workshop reference 2386

Rear Subframe — original illustration 1, reference 2386Original colors & callouts · Select to enlarge

11. Disconnect the differential vent tube.

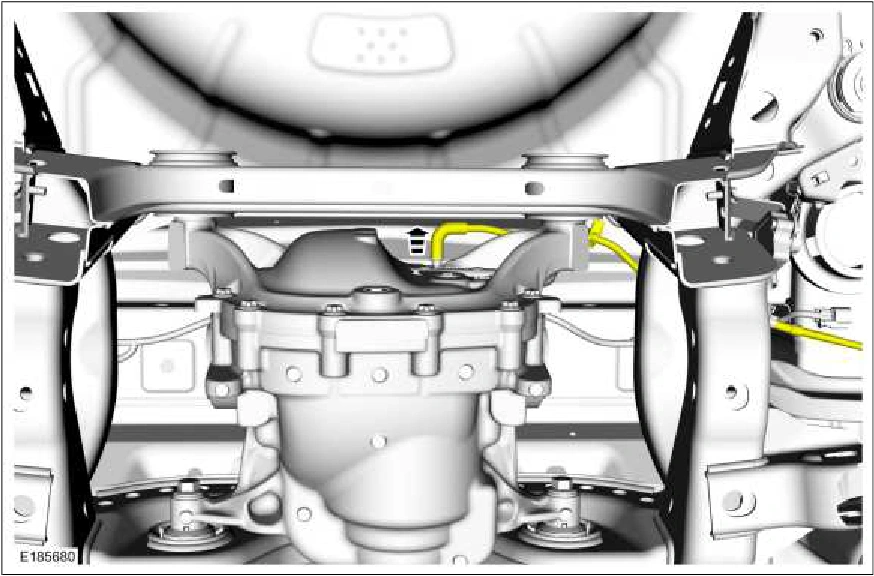

Rear Subframe — original illustration 2, reference 2386Original colors & callouts · Select to enlarge

12. On both sides. Index mark the rear subframe for reference during installation.
