Rear Subframe — 2016 workshop reference 2385

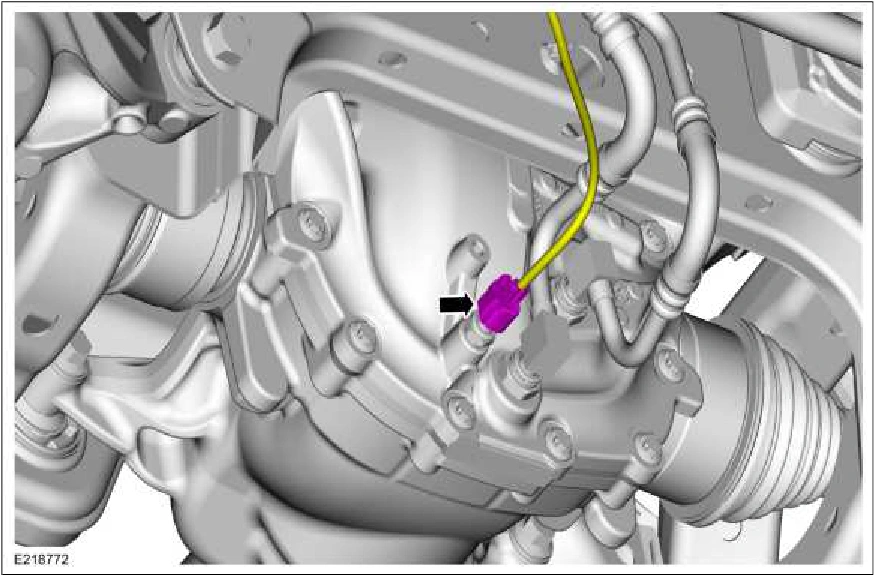

Rear Subframe — original illustration 1, reference 2385Original colors & callouts · Select to enlarge

9. If equipped.

1. Remove the differential cooling return line retaining clip.

2. Remove the differential cooling return line and position aside.

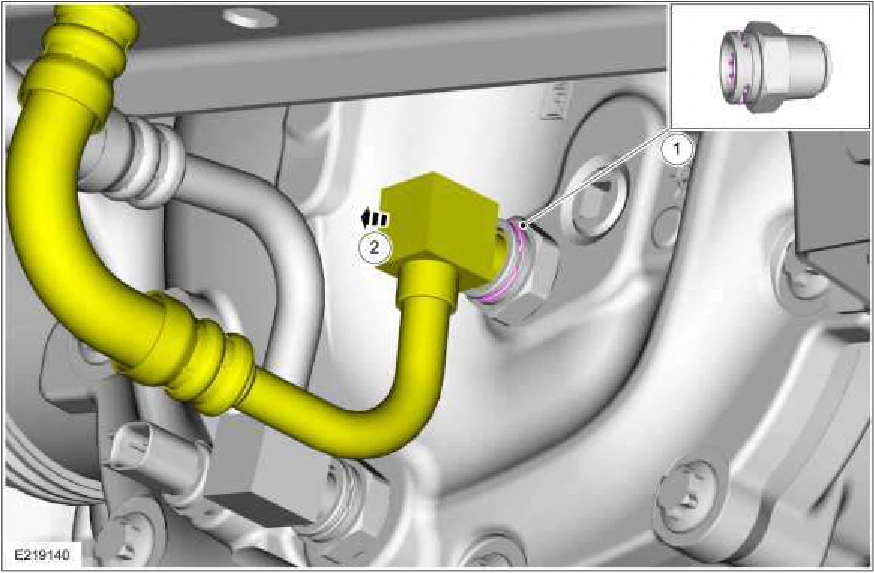

Rear Subframe — original illustration 2, reference 2385Original colors & callouts · Select to enlarge

10. If equipped.

1. Remove the differential cooling supply line retaining clip.

2. Remove the differential cooling supply line and position aside.
