Rear Subframe — 2016 workshop reference 2388

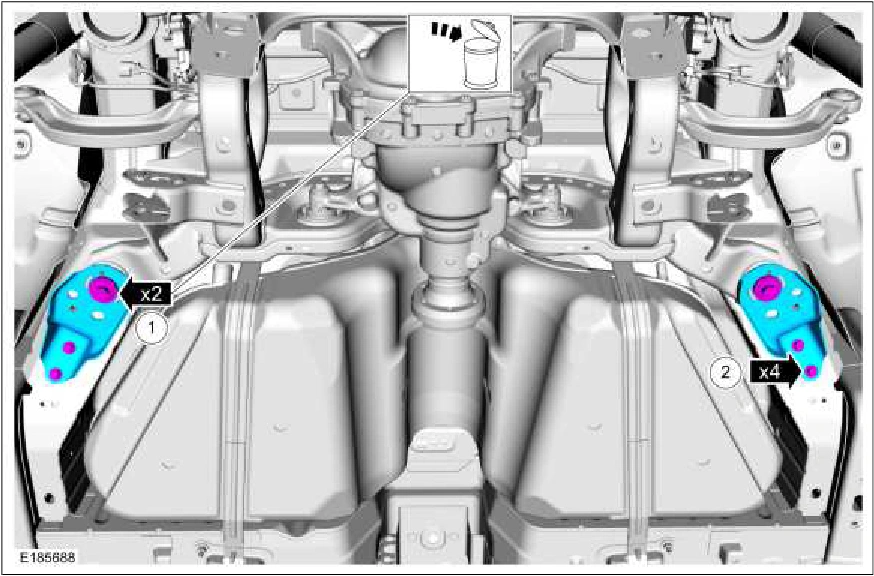

Rear Subframe — original illustration 1, reference 2388Original colors & callouts · Select to enlarge

15. Remove and discard the 2 rear subframe rearward bolts.

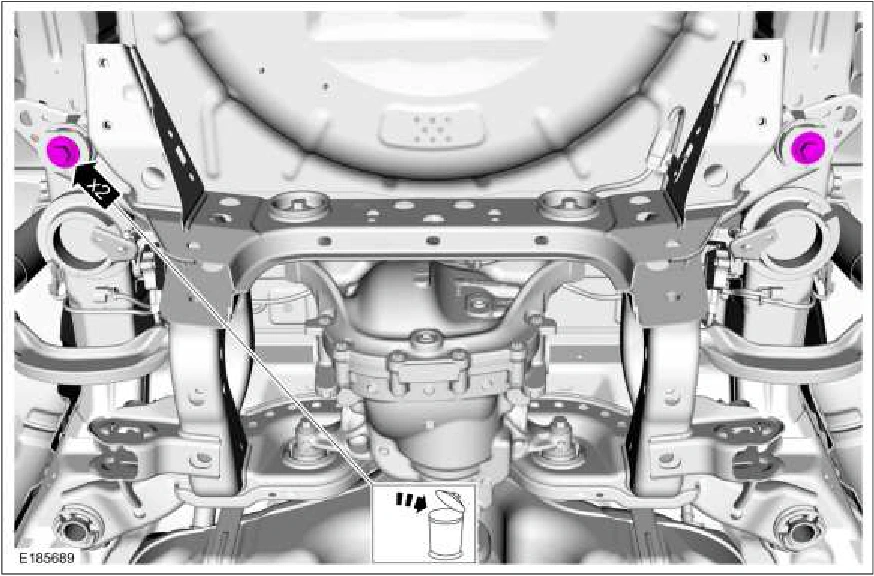

Rear Subframe — original illustration 2, reference 2388Original colors & callouts · Select to enlarge

16. Using the powertrain lift, lower the rear subframe from the vehicle. Use Special Service Tool: 300-OTC1585AE Powertrain Lift.
