Rear Subframe — 2016 workshop reference 2391

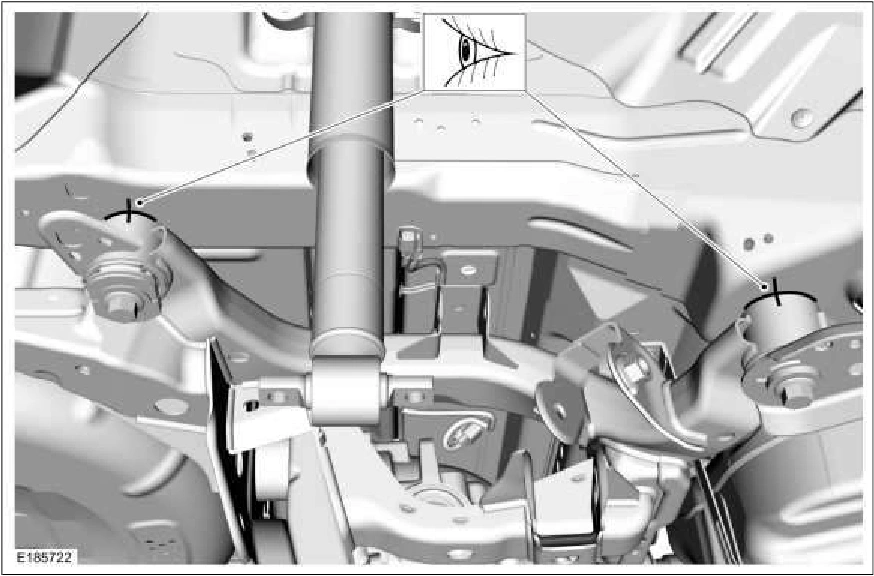

Rear Subframe — original illustration 1, reference 2391Original colors & callouts · Select to enlarge

Step 5

1. Tighten the 4 rear subframe bracket bolts. Torque : 41 lb.ft (55 Nm)

2. Tighten the 2 new rear subframe forward bolts. Torque : 129 lb.ft (175 Nm)

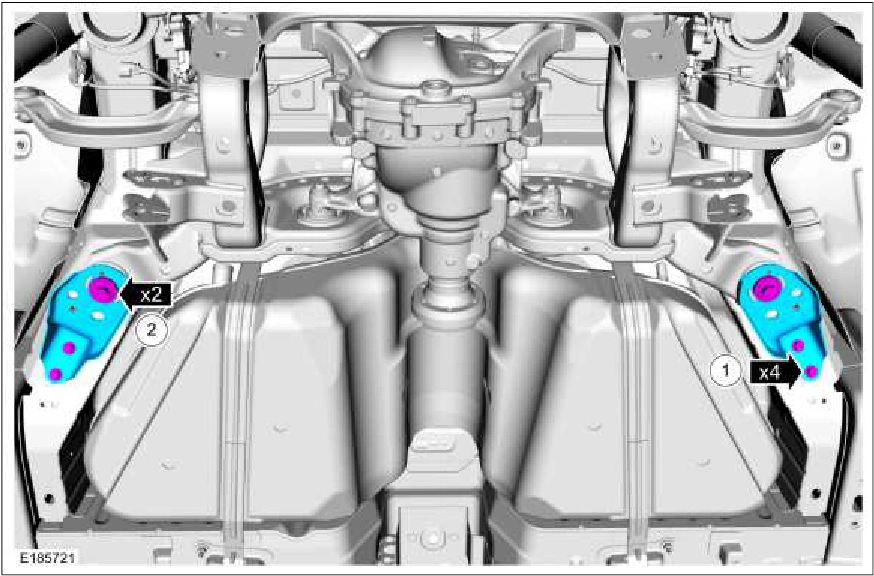

Rear Subframe — original illustration 2, reference 2391Original colors & callouts · Select to enlarge

6. Tighten the 2 new rear subframe rearward bolts. Torque : 129 lb.ft (175 Nm)

Source reference 2391
