Rear Subframe — 2016 workshop reference 2392

Rear Subframe — original illustration 1, reference 2392Original colors & callouts · Select to enlarge

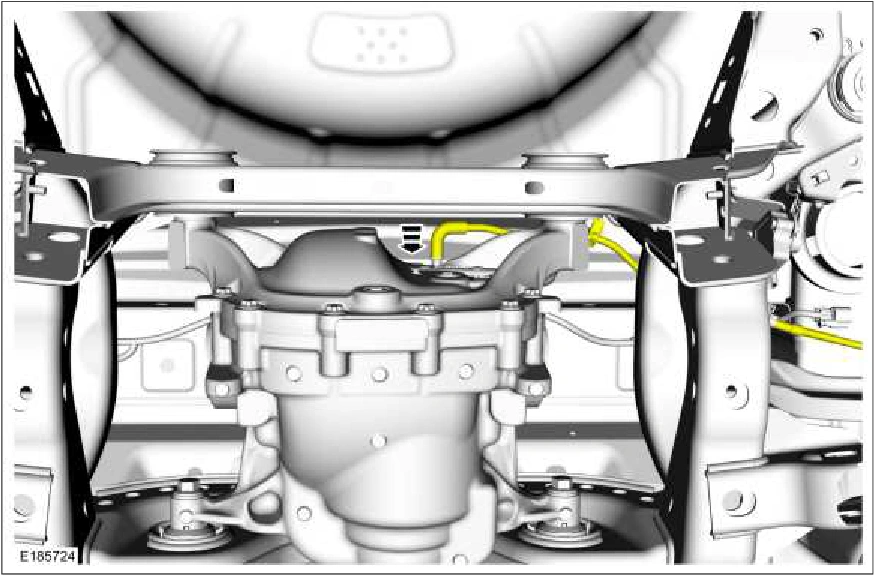

7. Connect the differential vent tube.

Rear Subframe — original illustration 2, reference 2392Original colors & callouts · Select to enlarge

8. If equipped. Connect the differential fluid temperature sensor electrical connector.
