Climate Control System - Vehicles With: Dual Automatic Temperature Control (DATC)

412-00 Climate Control System - General Information

2016 MustangReference 3,507 / 6,619HTML edition

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C233-1		C2402B-27
C233-2		C2402B-29
C233-4		C2402B-19

Positive Lead	Measurement / Action	Negative Lead

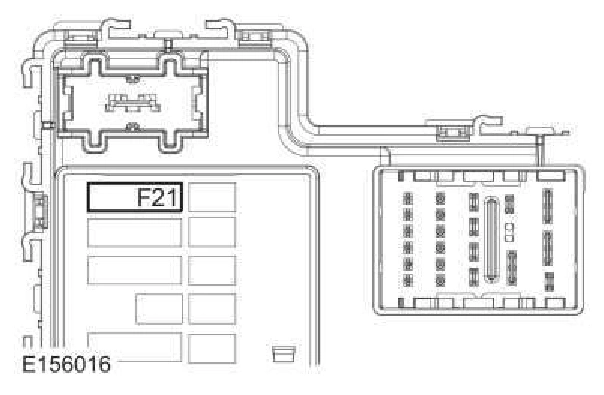

C233-6		BCM fuse 21 cavity, (component side) Climate Control System - Vehicles With: Dual Automatic Temperature Control (DATC) — original illustration 1, reference 3507Original colors & callouts · Select to enlarge

Positive Lead

Measurement /

Action

Negative Lead

C233-6

BCM fuse 21 cavity, (component side)

Climate Control System - Vehicles With: Dual Automatic Temperature Control (DATC) — original illustration 1, reference 3507Original colors & callouts · Select to enlarge

Are the resistances less than 3 ohms?

Yes		GO to N4
No	REPAIR the circuit.

N4 CHECK THE IN-VEHICLE TEMPERATURE AND HUMIDITY SENSOR CIRCUITS FOR A SHORT TOGETHER

Measure:

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C233-1		C233-2
C233-1		C233-3
C233-1		C233-4
C233-1		C233-5
C233-1		C233-6
C233-2		C233-3
C233-2		C233-4
