Is any damage present?
Yes | • For the USB hub to APIM USB cable, INSTALL a new USB hub to APIM USB cable. REFER to: SYNC Module [APIM] to Universal Serial Bus (USB) Port Cable (415-00B Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, Removal and Installation). • For the APIM, PERFORM the APIM Hardware Test. Click here to access Guided Routine (APIM). |
|---|---|
No | GO to Y14 |
Y14 ISOLATE THE USB (UNIVERSAL SERIAL BUS) HUB TO APIM (SYNC MODULE) USB (UNIVERSAL SERIAL BUS) CABLE

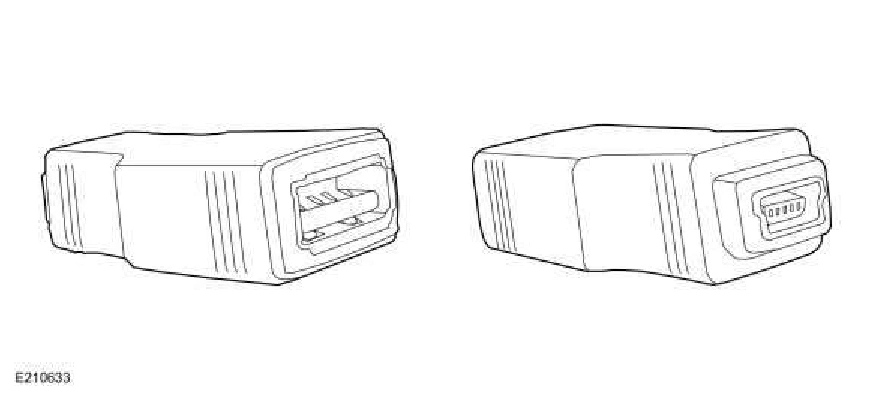

Install a new USB hub to APIM USB cable. REFER to: SYNC Module [APIM] to Universal Serial Bus (USB) Port Cable (415-00B Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, Removal and Installation). Connect: USB hub to APIM USB cable to the APIM. REFER to: SYNC Module [APIM] (415-00B Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, Removal and Installation). Connect: Female Type A 4 Pin To Female Type Mini-B 5 Pin USB 2.0 Adaptor (Rotunda part number CCMUSB-AF-BF5) or equivalent to the USB hub to APIM USB cable.
Connect: MIT 105-00120 to the USB Adaptor. Select USB mode on the MIT 105-00120. Operate the audio system in USB mode and observe the audio output.
Is the audio system USB output OK?
Yes | The system is operating correctly at this time. The concern was caused by an inoperative USB hub to APIM USB cable. |
|---|---|
No | GO to Y15 |
Y15 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION
Ignition OFF. Disconnect and inspect the APIM connector. Repair:
Corrosion (clean module pins or install new connectors or terminals) Damaged or bent pins (install new terminals or pins)
