Intake Manifold Runner Control (IMRC) Position Sensor

303-14C Electronic Engine Controls - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Removal and Installation

01/8/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the intake manifold. Refer to: Intake Manifold (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

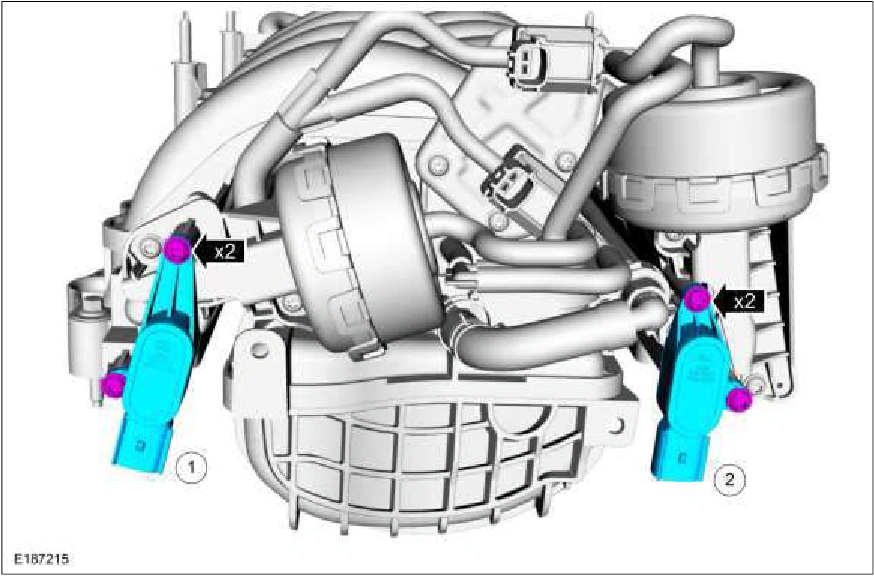

2. Remove the retainers and the LH IMRC position sensor. Torque : 53 lb.in (6 Nm) Remove the retainers and the RH IMRC position sensor. Torque : 53 lb.in (6 Nm)

303-14C Electronic Engine Controls - 5.0L — original illustration 1, reference 772Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 772
