Knock Sensor (KS)

303-14C Electronic Engine Controls - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Removal and Installation

01/12/2015

Base Part Number: 12A699

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the intake manifold. Refer to: Intake Manifold (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

2. NOTE: Note the position of the components before removal.

1. Disconnect the KS electrical connectors.

2. Remove the bolts and the KS. Torque : 177 lb.in (20 Nm)

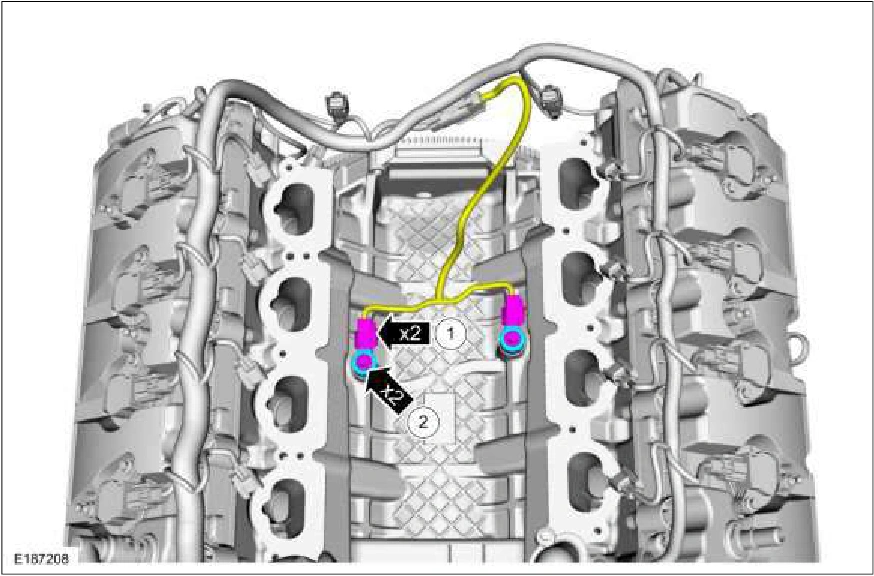

303-14C Electronic Engine Controls - 5.0L — original illustration 1, reference 774Original colors & callouts · Select to enlarge

Installation

1. NOTE: Make sure that the components are installed to the position noted before removal.

To install, reverse the removal procedure.
