Installation

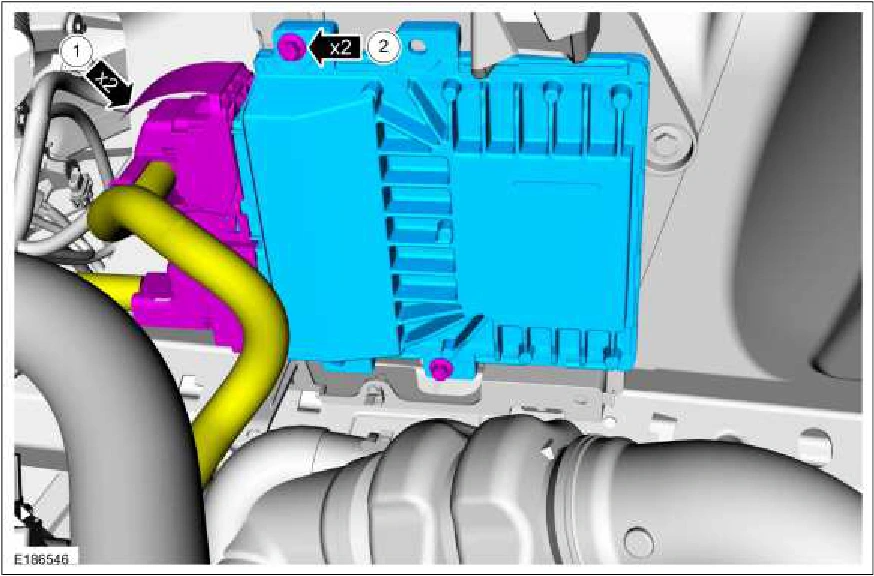

303-14C Electronic Engine Controls - 5.0L — original illustration 1, reference 777Original colors & callouts · Select to enlarge

Step 1

1. Connect the PCM electrical connectors.

2. Install the PCM and the retainers. Torque : 62 lb.in (7 Nm)

303-14C Electronic Engine Controls - 5.0L — original illustration 2, reference 777Original colors & callouts · Select to enlarge

2. Position back the BJB.
