Mass Air Flow (MAF) and Intake Air Temperature (IAT) Sensor

303-14C Electronic Engine Controls - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Removal and Installation

10/27/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

Step 1

1. Disconnect the mass air flow (MAF) intake air temperature (IAT) sensor electrical connector.

2. Remove the retainers and the mass air flow (MAF) intake air temperature (IAT) sensor.

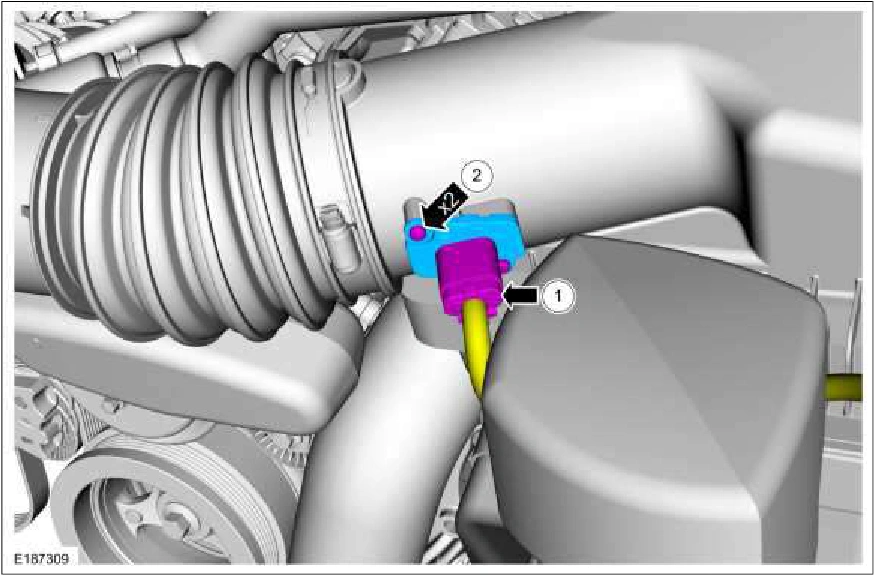

303-14C Electronic Engine Controls - 5.0L — original illustration 1, reference 775Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 775
