Intake Manifold Runner Control (IMRC) Solenoid

303-14C Electronic Engine Controls - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Removal and Installation

01/8/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the intake manifold. Refer to: Intake Manifold (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

2. Disconnect the 6 vacuum hoses from the IMRC solenoids, remove the 3 retainers and the solenoid mounting plate. Torque : 53 lb.in (6 Nm) Remove the 2 retainers and remove the IMRC solenoids. Torque : 71 lb.in (8 Nm)

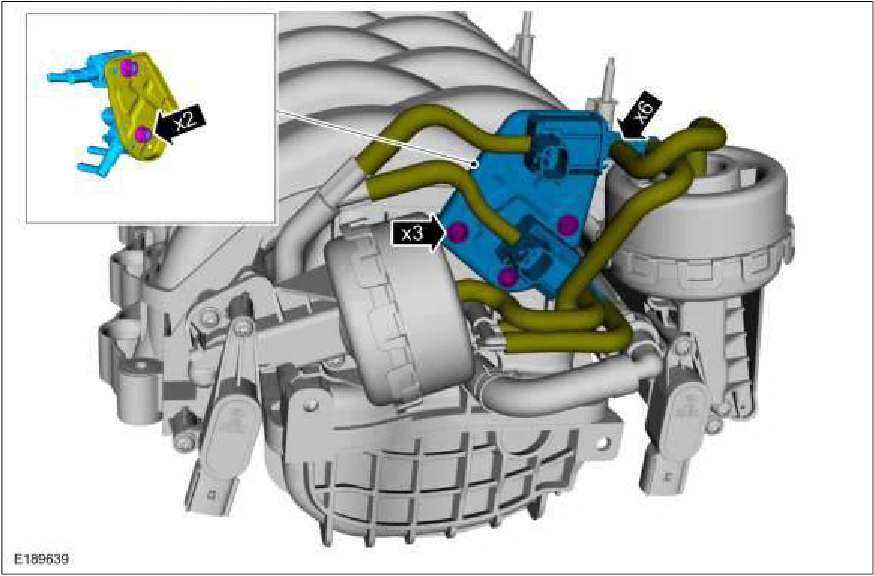

303-14C Electronic Engine Controls - 5.0L — original illustration 1, reference 773Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 773
