Powertrain Control Module (PCM)

303-14C Electronic Engine Controls - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Removal and Installation

06/3/2015

Base Part Number: 12A650

Removal

1. NOTE: PCM installation DOES NOT require new keys or programming of keys, only a Parameter Reset of the PATS.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the PMI routine. Refer to: Module Configuration - System Operation and Component Description (418-01 Module Configuration, Description and Operation).

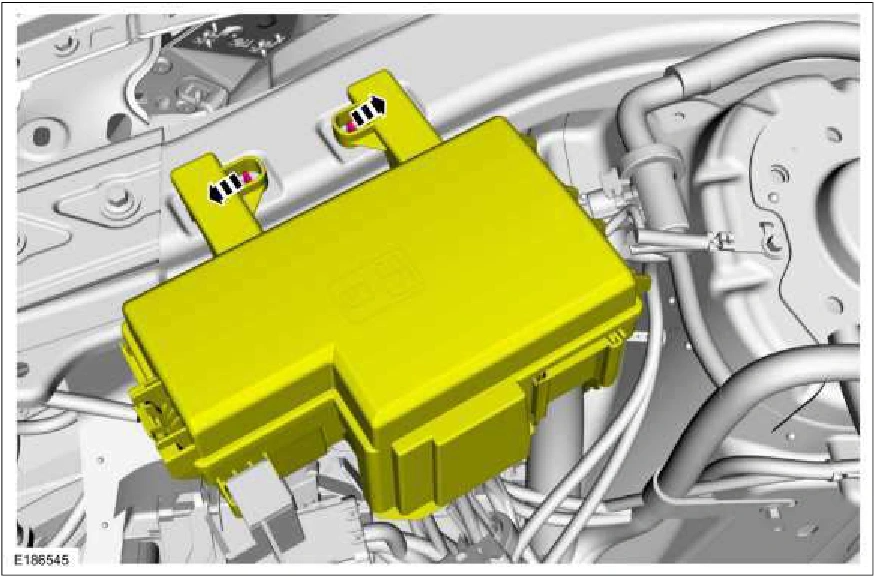

2. Unclip and position aside the BJB.

303-14C Electronic Engine Controls - 5.0L — original illustration 1, reference 776Original colors & callouts · Select to enlarge

Step 3

1. Disconnect the PCM electrical connectors.

2. Remove the retainers and the PCM.

Source reference 776
